Guhring M 10 x 1.5 1st hand tap Metric HSS

Product Code: 862 10,000

$60.97$55.43 Ex. GST

Product Code: 862 10,000 SKU 862 10,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring M 10 x 1.5 1st hand tap Metric HSS

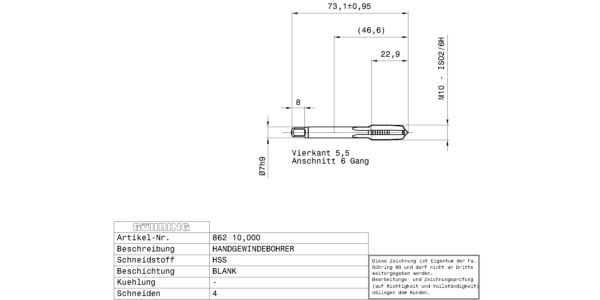

Guhring M 10 x 1.5 1st hand tap Metric HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

First tap Hand taps for ISO metric threads M10 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: A / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0250 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 352 Surface: bright Discount group: 118 Type: 862 Cutting direction: right-hand Type: N Material: HSS Additional information: First tap Form: A Threads: M Tolerance class thread: ISO2/6H Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 6-8 Code no.: 10.000 Weight: 0.025 No of cutting edges: 4 Total length: 70.000 Thread length: 20.000 Groove length: 32.000 Norm 2: DIN 2184-2 Wrench opening 1: 5.500 Core hole Ø: 8.50 Shank Ø: 7.000 Nominal dimension thread: M10 Pitch: 1.500 External Ø: 9.400 Statistical goods number: 82074010

Brand

Guhring
