Guhring M 16 x 2 Bottoming Hand Tap HSS

Product Code: 864 16,000

$119.61$108.74 Ex. GST

Product Code: 864 16,000 SKU 864 16,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring M 16 x 2 Bottoming Hand Tap HSS

Guhring M 16 x 2 Bottoming Hand Tap HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bottoming tap Hand taps for ISO metric threads M16 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0640 kg
Dimensions
barcode

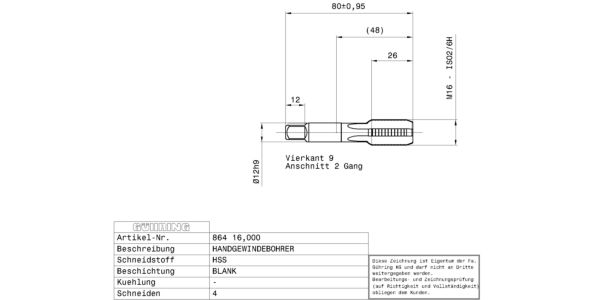

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 352 Surface: bright Discount group: 118 Type: 864 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Threads: M Tolerance class thread: ISO2/6H Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 16.000 Weight: 0.064 No of cutting edges: 4 Total length: 80.000 Thread length: 26.000 Groove length: 41.000 Norm 2: DIN 2184-2 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 14.00 Shank Ø: 12.000 Nominal dimension thread: M16 Pitch: 2.000 External Ø: 16.090 Statistical goods number: 82074010

Brand

Guhring
