Guhring M 24 x 3 2nd hand tap Metric HSS

Product Code: 863 24,000

$253.58$230.53 Ex. GST

Product Code: 863 24,000 SKU 863 24,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring M 24 x 3 2nd hand tap Metric HSS

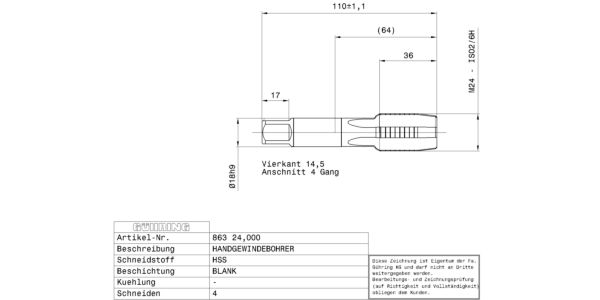

Guhring M 24 x 3 2nd hand tap Metric HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Second tap Hand taps for ISO metric threads M24 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: D / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.2030 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 352 Surface: bright Discount group: 118 Type: 863 Cutting direction: right-hand Type: N Material: HSS Additional information: Second tap Form: D Threads: M Tolerance class thread: ISO2/6H Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5 Code no.: 24.000 Weight: 0.203 No of cutting edges: 4 Total length: 110.000 Thread length: 36.000 Groove length: 56.000 Norm 2: DIN 2184-2 Wrench opening 1: 14.500 Neck Ø: 17.800 Core hole Ø: 21.00 Shank Ø: 18.000 Nominal dimension thread: M24 Pitch: 3.000 External Ø: 23.400 Statistical goods number: 82074010

Brand

Guhring
