Guhring M18x2.5 3pce Hand Tap Set Metric HSS

Product Code: 861 18,000

$531.08$482.80 Ex. GST

Product Code: 861 18,000 SKU 861 18,000 Category CUTTING TOOLS (HSS & Carbide)

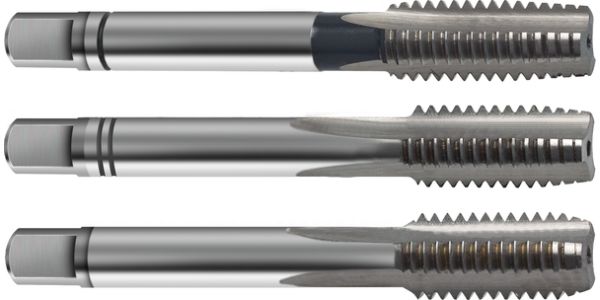

Guhring M18x2.5 3pce Hand Tap Set Metric HSS

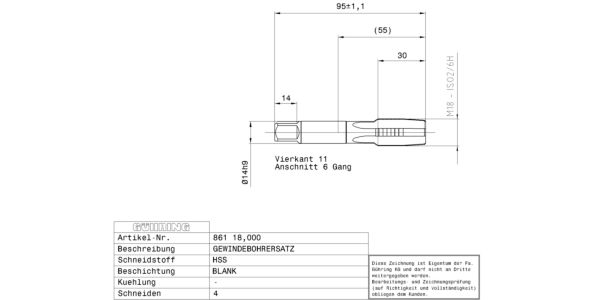

Guhring M18x2.5 3pce Hand Tap Set Metric HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for ISO metric threads M18 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.1370 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 352 Surface: bright Discount group: 118 Type: 861 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: M Tolerance class thread: ISO2/6H Hole type: through-, blind hole Code no.: 18.000 Weight: 0.137 Number parts per set: 3.00 No of cutting edges: 4 Total length: 95.000 Thread length: 30.000 Groove length: 46.000 Norm 2: DIN 2184-2 Wrench opening 1: 11.000 Neck Ø: 13.800 Core hole Ø: 15.50 Shank Ø: 14.000 Nominal dimension thread: M18 Pitch: 2.500 Statistical goods number: 82074010

Brand

Guhring
