Guhring M20 Counterbore Taper Shank HSS

Product Code: 485 33,000

$376.74$342.49 Ex. GST

Product Code: 485 33,000 SKU 485 33,000 Category

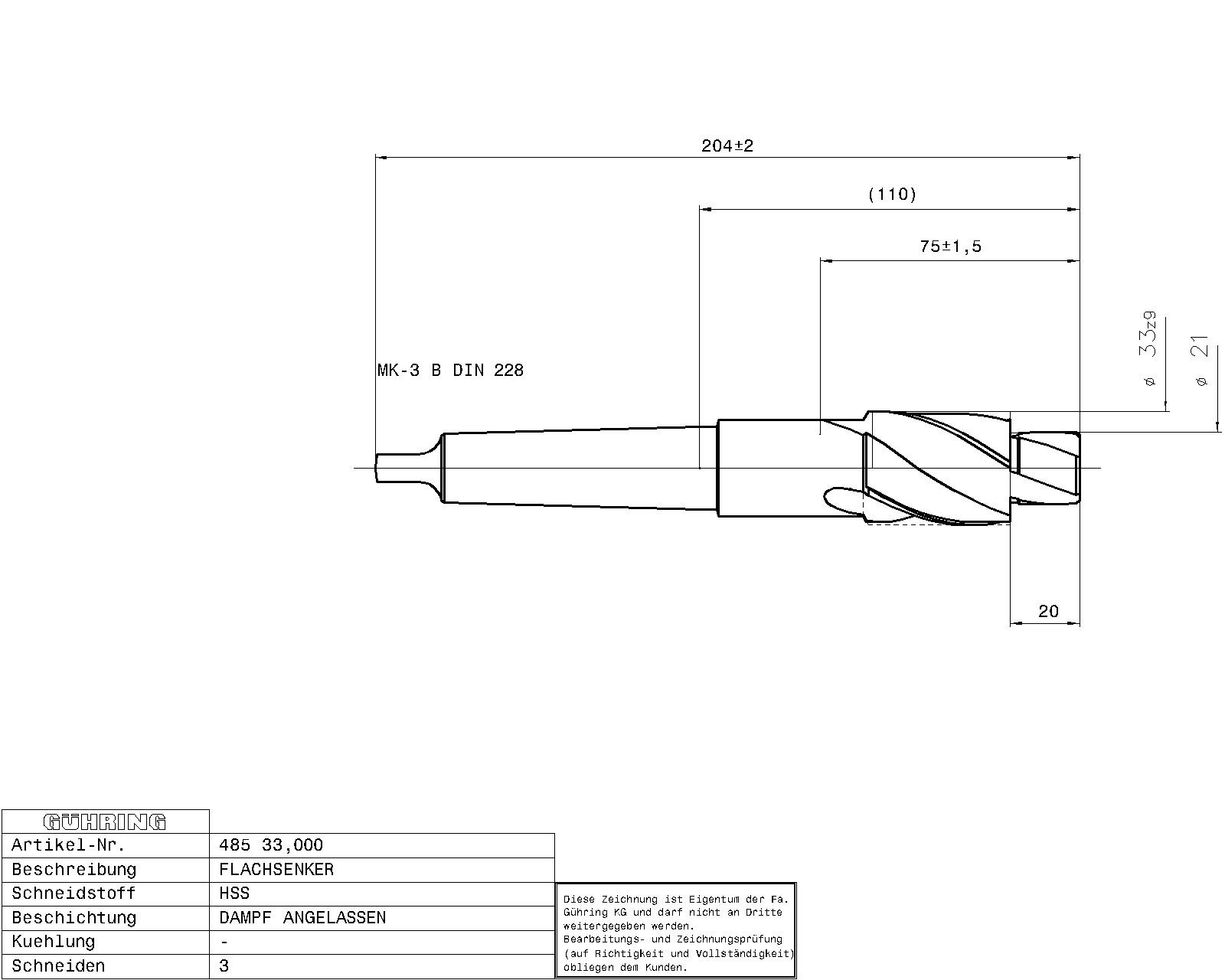

Guhring M20 Counterbore Taper Shank HSS
Guhring M20 Counterbore Taper Shank HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Counterbores with pilots for fine tolerances / Ø 33.000 mm / 180 ° / MK-3 / Company std. / HSS / steam tempered / Cutting direction: right-hand /
Execution: with fixed pilot • for through-holes, fine, in accordance with DIN ISO 273

Additional information

Weight 0.6180 kg
Dimensions
barcode
Additional Information

Connection Code Machine Side: Morse taper
Internal Cooling: without
Norm: Company std.
Surface: steam tempered
Discount Group: 105
Type: 485
Cutting Direction: right-hand
Material: HSS
Angle Step 1: 180.00
Additional Information: series fine
Hole Type: Through hole for countersink screw heads
Code No.: 33.000
Weight: 0.618
No. of Cutting Edges: 3
Total Length: 204.000
Groove Length: 75.000
Neck Ø: 28.000
Nominal Dimension Thread: M20
Nominal Ø mm: 33.000
Holder, Machine Side: MK-3
Cutting Edge Length: 40.000
Pilot Ø: 21.000
Statistical Goods Number: 82076030
Radius Compensation: 8300.000
