Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring M20x2.5 3pce Hand Tap Set Metric HSS

Guhring M20x2.5 3pce Hand Tap Set Metric HSS

Product Code: 861 20,000

$574.15$521.95 Ex. GST

Product Code: 861 20,000 SKU 861 20,000 Category CUTTING TOOLS (HSS & Carbide)

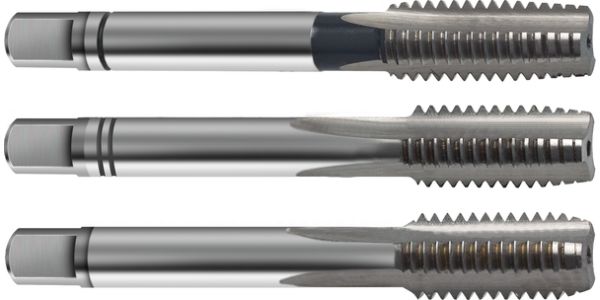

Guhring M20x2.5 3pce Hand Tap Set Metric HSS

Guhring M20x2.5 3pce Hand Tap Set Metric HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for ISO metric threads M20 / ISO2/6H / DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.4550 kg
Dimensions
barcode

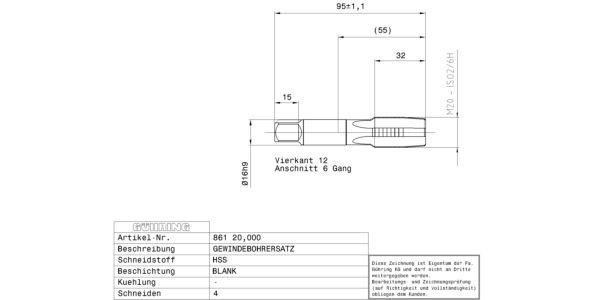

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 352 Surface: bright Discount group: 118 Type: 861 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: M Tolerance class thread: ISO2/6H Hole type: through-, blind hole Code no.: 20.000 Weight: 0.455 Number parts per set: 3.00 No of cutting edges: 4 Total length: 95.000 Thread length: 32.000 Groove length: 46.000 Norm 2: DIN 2184-2 Wrench opening 1: 12.000 Neck Ø: 15.800 Core hole Ø: 17.50 Shank Ø: 16.000 Nominal dimension thread: M20 Pitch: 2.500 Statistical goods number: 82074010

Brand

Guhring
