Guhring Machine Chucking Reamers HSS-E

Description

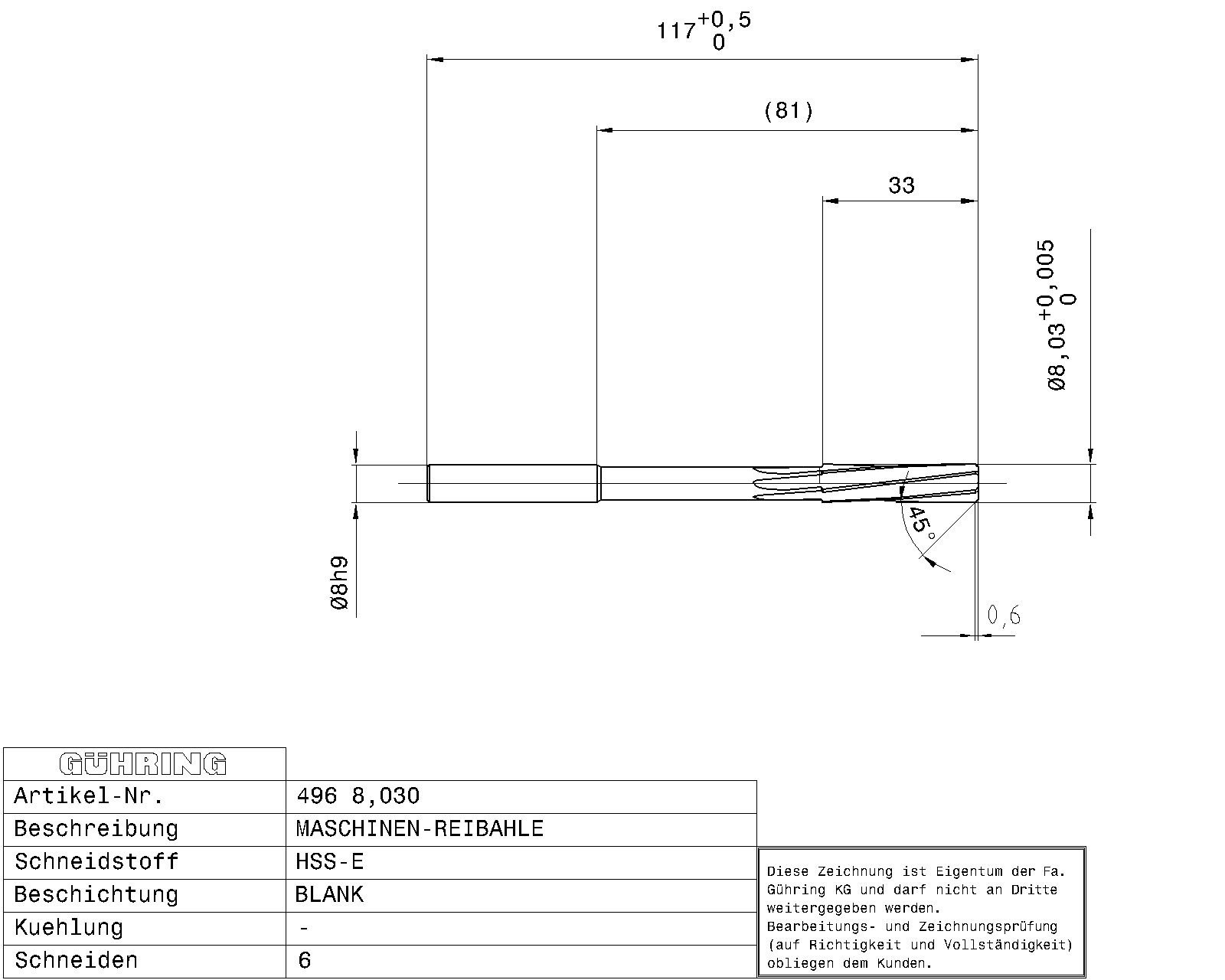

Machine reamers / Ø 8.030 mm / Tolerance zone: +0.004/+0.005 / DIN 212-2 / HSS-E / bright / Form: B / Cutting direction: right-hand /
Execution: manufacturing tolerance: ≤ Ø 5.50 mm: 0.000/+0.004 • > Ø 5.50 mm: 0.000/+0.005 • ≤ Ø 3.75 mm with external centres on both ends • > Ø 3.75 mm with internal centres on both ends • Ø in increments of 0.01 mm • chamfer lead can also be used for blind holes, to do this, remove chips

Additional information

Weight	0.0390 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Tolerance on Ø: +0.004/+0.005 Internal cooling: without Norm: DIN 212-2 Surface: bright Discount group: 105 Type: 496 Cutting direction: right-hand Material: HSS-E Additional information: 1/100 Form: B Hole type: through-, blind hole Groove: left fluted Spacing: U Code no.: 8.030 Weight: 0.039 No of cutting edges: 6 Total length: 117.000 Usable length: 81.000 Neck Ø: 7.000 Shank Ø: 8.000 Nominal Ø mm: 8.030 Cutting edge length: 33.000 Reach length: 81.000 Smallest Ø: 8.030 Statistical goods number: 82076030
