Guhring Machine Chucking Reamers HSS-E

Description

Machine reamers / Ø 2.500 mm / Tolerance zone: +0.004/+0.005 / DIN 212-1 / HSS-E / bright / Form: B / Cutting direction: right-hand /
Execution: manufacturing tolerance: ≤ Ø 5.50 mm: 0.000/+0.004 • > Ø 5.50 mm: 0.000/+0.005 • ≤ Ø 3.75 mm with external centres on both ends • > Ø 3.75 mm with internal centres on both ends • Ø in increments of 0.01 mm • chamfer lead can also be used for blind holes, to do this, remove chips

Additional information

Weight	0.0040 kg
Dimensions
barcode

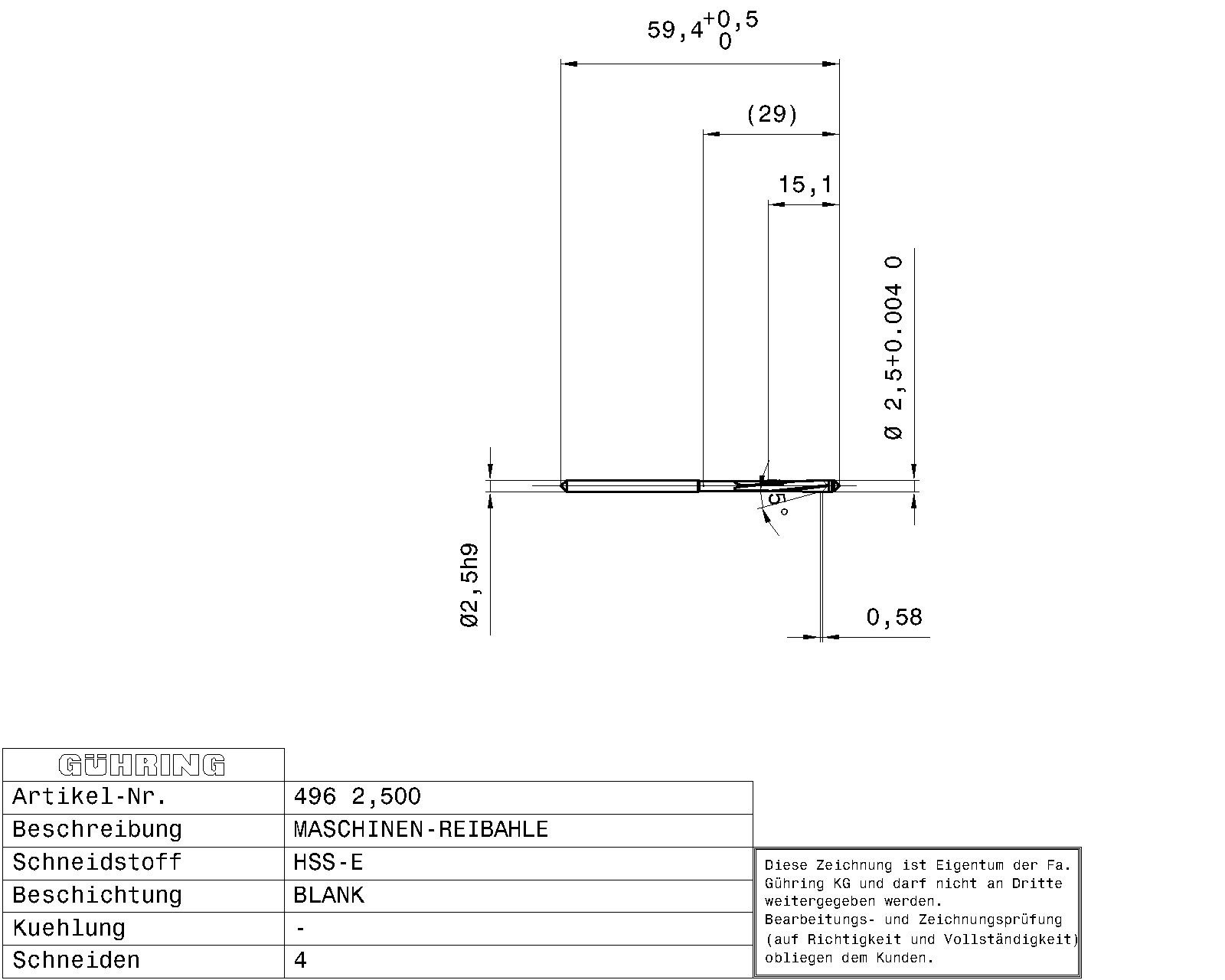

Additional Information	Connection Code Machine Side: straight shank Tolerance on Ø: +0.004/+0.005 Internal Cooling: without Norm: DIN 212-1 Surface: bright Discount Group: 105 Type: 496 Cutting Direction: right-hand Material: HSS-E Additional Information: 1/100 Form: B Hole Type: through-, blind hole Groove: left fluted Spacing: U Code No.: 2.500 Weight: 0.004 No. of Cutting Edges: 4 Total Length: 57.000 Groove Length: 20.000 Usable Length: 29.000 Neck Ø: 2.100 Shank Ø: 2.500 Nominal Ø mm: 2.500 Cutting Edge Length: 14.000 Reach Length: 29.000 Smallest Ø: 2.500 Statistical Goods Number: 82076030

Need Technical Advice?

Description

Additional information

Brand

Guhring
