Guhring Machine Chucking Reamers HSS-E

Description

Machine reamers / Ø 2.800 mm / Tolerance zone: +0.004/+0.005 / DIN 212-1 / HSS-E / bright / Form: B / Cutting direction: right-hand /
Execution: manufacturing tolerance: ≤ Ø 5.50 mm: 0.000/+0.004 • > Ø 5.50 mm: 0.000/+0.005 • ≤ Ø 3.75 mm with external centres on both ends • > Ø 3.75 mm with internal centres on both ends • Ø in increments of 0.01 mm • chamfer lead can also be used for blind holes, to do this, remove chips

Additional information

Weight	0.0030 kg

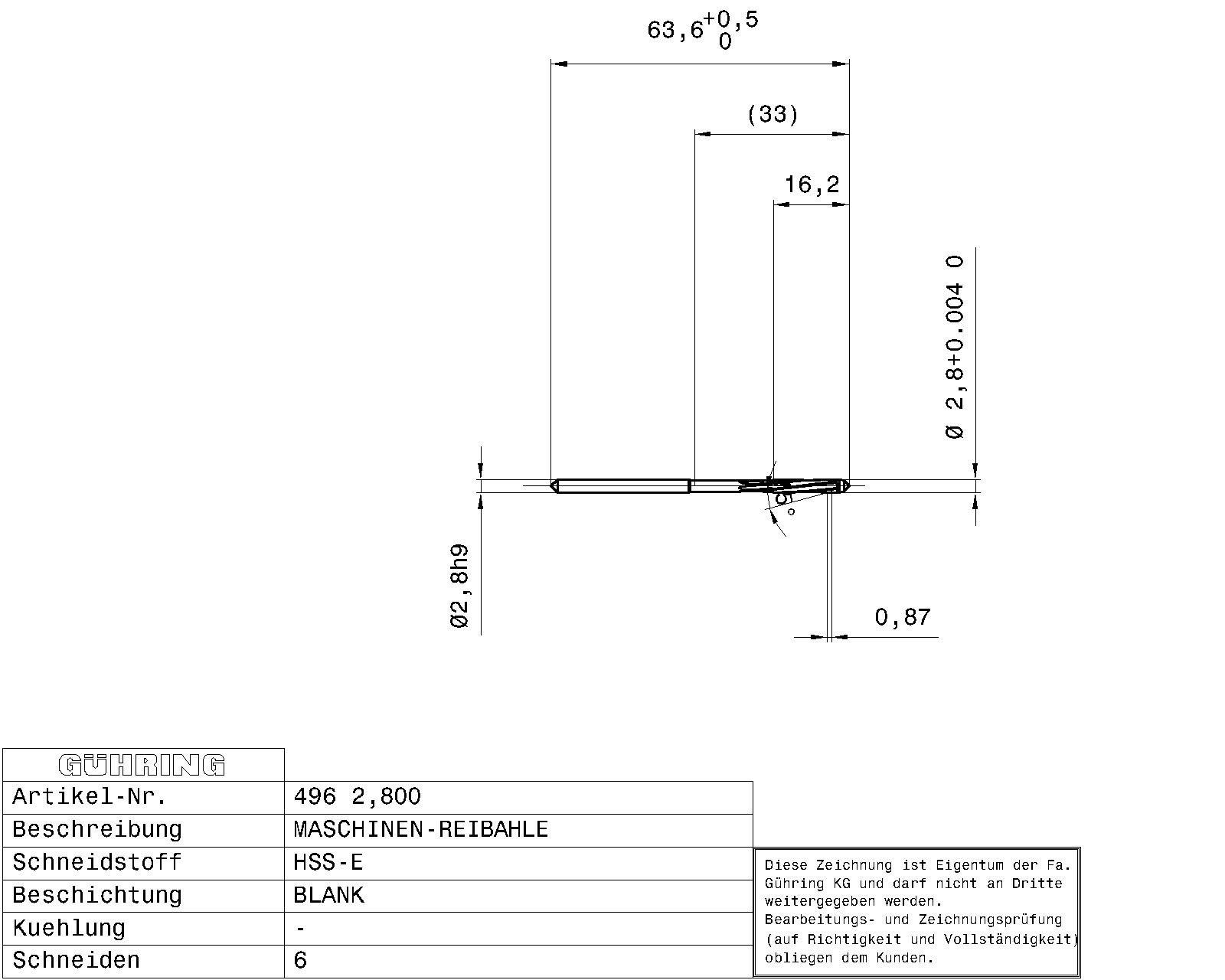

Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Tolerance on Ø: +0.004/+0.005 Internal Cooling: without Norm: DIN 212-1 Surface: bright Discount Group: 105 Type: 496 Cutting Direction: right-hand Material: HSS-E Additional Information: 1/100 Form: B Hole Type: through-, blind hole Groove: left fluted Spacing: U Code No.: 2.800 Weight: 0.003 No. of Cutting Edges: 6 Total Length: 61.000 Groove Length: 21.000 Usable Length: 33.000 Neck Ø: 2.400 Shank Ø: 2.800 Nominal Ø mm: 2.800 Cutting Edge Length: 15.000 Reach Length: 33.000 Smallest Ø: 2.800 Statistical Goods Number: 82076030
