Guhring Machine Reamers Taper Shank HSS-E H7

Product Code: 405 26,000

$219.46$199.51 Ex. GST

Product Code: 405 26,000 SKU 405 26,000 Category
Guhring Machine Reamers Taper Shank HSS-E H7
Guhring Machine Reamers Taper Shank HSS-E H7 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

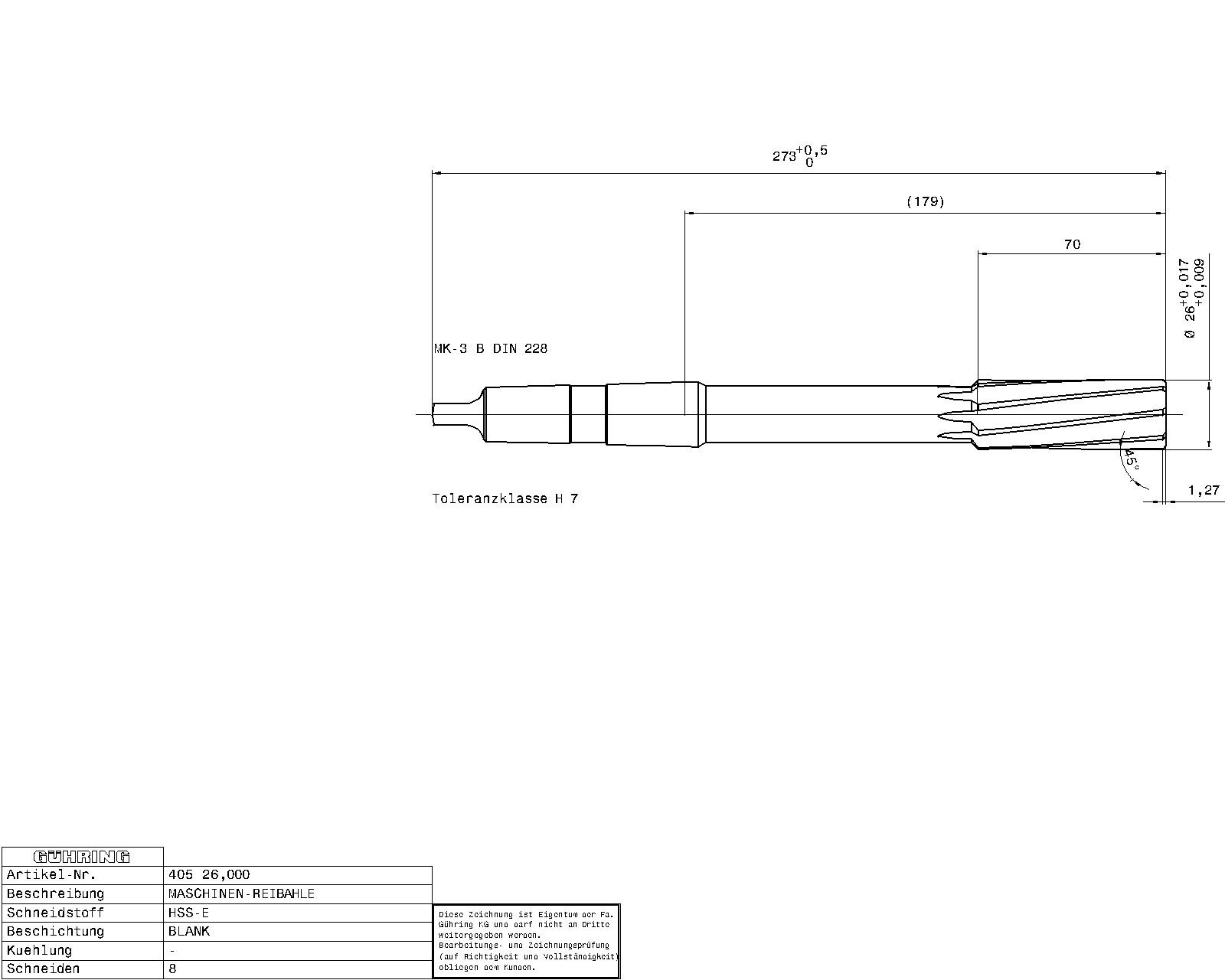

Machine reamers / Ø 26.000 mm / Tolerance zone: H7 / MK-3 / DIN 208 / HSS-E / bright / Form: B / Cutting direction: right-hand /
Execution: Ø 3.00 mm cutting side with with external centre, shank end with internal centering • > Ø 3.00 mm with internal centres on both ends • ≤ Ø 4.00 mm to company standard

Additional information

Weight 0.7530 kg
Dimensions
barcode
Additional Information

Connection Code Machine Side: Morse taper
Nominal Ø Tolerance Field: H7
Internal Cooling: without
Norm: DIN 208
Surface: bright
Discount Group: 105
Type: 405
Cutting Direction: right-hand
Material: HSS-E
Form: B
Hole Type: through hole
Groove: left fluted
Spacing: U
Code No.: 26.000
Weight: 0.753
No. of Cutting Edges: 8
Total Length: 273.000
Groove Length: 85.000
Usable Length: 174.000
Neck Ø: 21.000
Nominal Ø mm: 26.000
Holder, Machine Side: MK-3
Cutting Edge Length: 70.000
Reach Length: 179.000
Smallest Ø: 26.000
Statistical Goods Number: 82076030

Brand

Guhring
