Guhring Machine Reamers Taper Shank HSS-E H7

Description

Machine reamers / Ø 15.000 mm / Tolerance zone: H7 / MK-2 / DIN 208 / HSS-E / bright / Form: B / Cutting direction: right-hand /
Execution: Ø 3.00 mm cutting side with with external centre, shank end with internal centering • > Ø 3.00 mm with internal centres on both ends • ≤ Ø 4.00 mm to company standard

Additional information

Weight	0.2440 kg

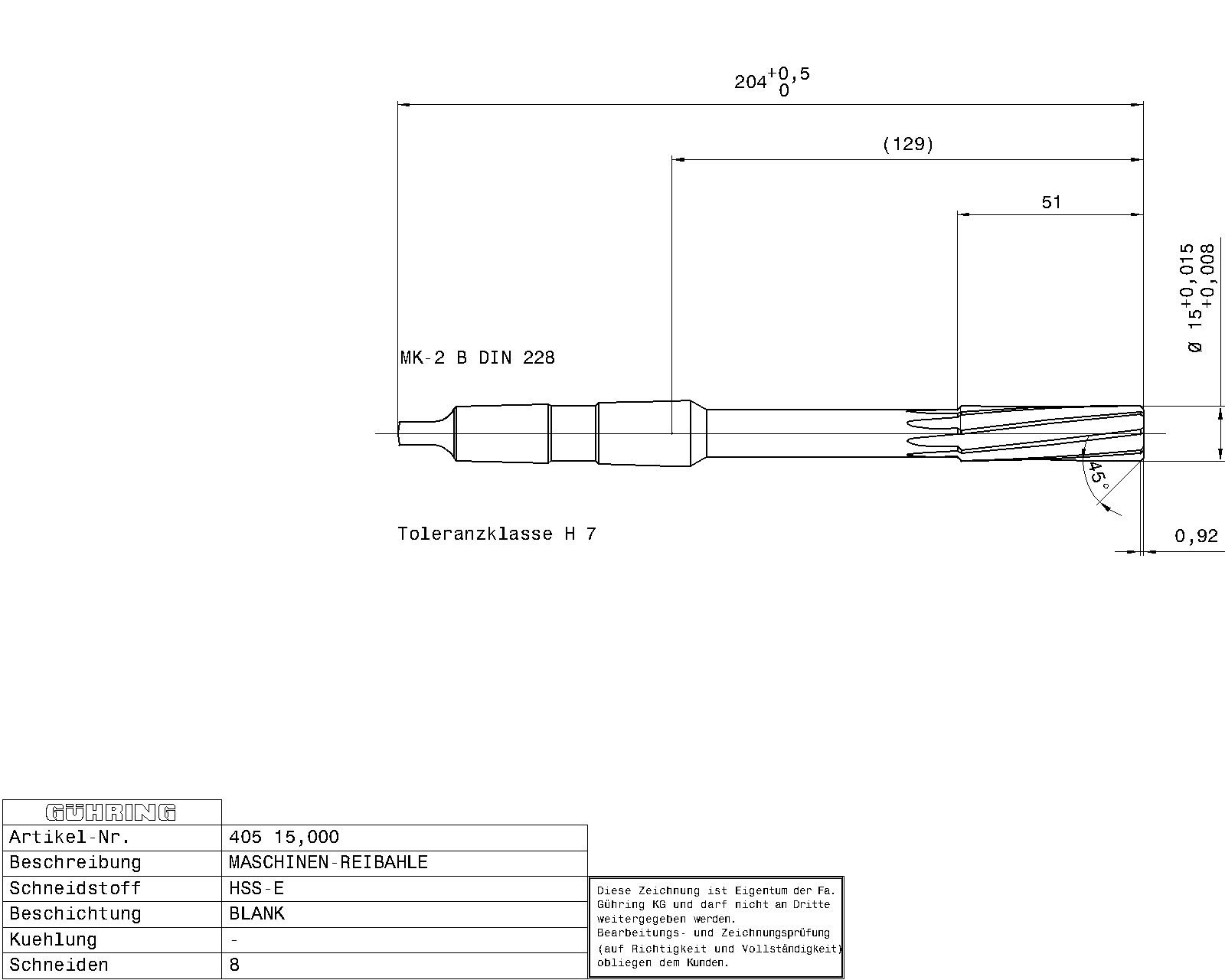

Dimensions
barcode
Additional Information	Connection Code Machine Side: Morse taper Nominal Ø Tolerance Field: H7 Internal Cooling: without Norm: DIN 208 Surface: bright Discount Group: 105 Type: 405 Cutting Direction: right-hand Material: HSS-E Form: B Hole Type: through hole Groove: left fluted Spacing: U Code No.: 15.000 Weight: 0.244 No. of Cutting Edges: 8 Total Length: 204.000 Groove Length: 65.000 Usable Length: 124.000 Neck Ø: 13.000 Nominal Ø mm: 15.000 Holder, Machine Side: MK-2 Cutting Edge Length: 50.000 Reach Length: 129.000 Smallest Ø: 15.000 Statistical Goods Number: 82076030

Need Technical Advice?

Description

Additional information

Brand

Guhring
