Guhring Metric Endmill 3 Flute Carbide Fire Coat

Description

Mini slot drills (3-fluted) / Ø 0.600 mm / e8 / DIN 6535-HA / Company std. / Solid carbide / FIRE / Type: N / Cutting direction: right-hand

Weight	0.0070 kg
Dimensions
barcode

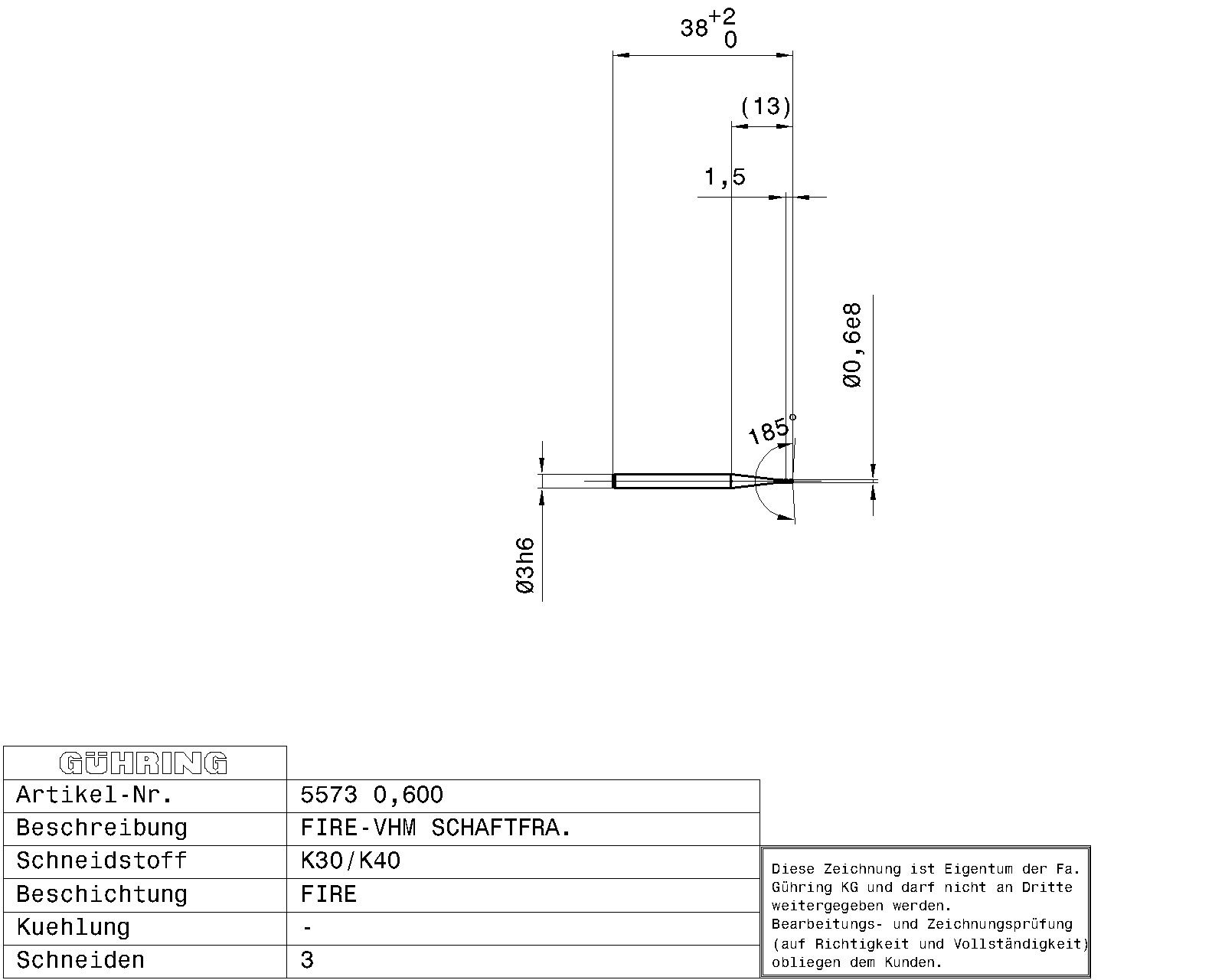

Additional Information	Connection code machine side: DIN 6535-HA/HB Nominal Ø tolerance field: e8 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5573 Cutting direction: right-hand Type: N Material: Solid carbide No of cutting edges: 3 Helix angle: 30 Code no.: 0.600 Weight: 0.007 Total length: 38.000 Groove length: 2.500 Usable length: 3.400 Shank Ø: 3.000 Nominal Ø mm: 0.600 Holder, machine side: DIN 6535-HA Cutting edge length: 1.500 Reach length: 13.000 Corner chamfer: 0.025 Statistical goods number: 82077010
