Guhring Metric Endmill 3 Flute Carbide Fire Coat

Description

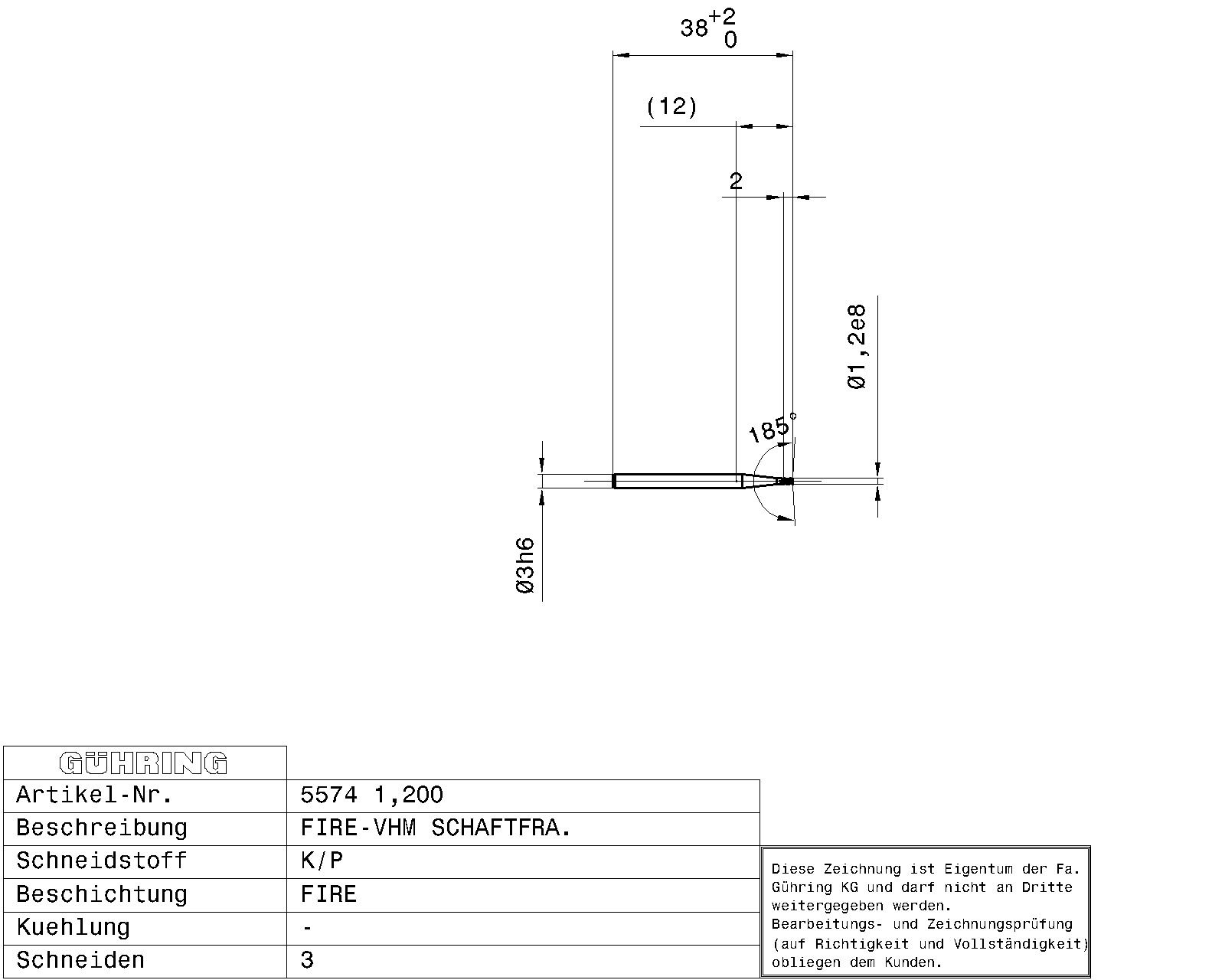

Mini slot drills (3-fluted) / Ø 1.200 mm / e8 / DIN 6535-HA / Company std. / Solid carbide / FIRE / Type: NH / Cutting direction: right-hand

Weight	0.0030 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA/HB Nominal Ø tolerance field: e8 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5574 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 3 Helix angle: 45 Code no.: 1.200 Weight: 0.003 Total length: 38.000 Groove length: 2.800 Usable length: 3.400 Shank Ø: 3.000 Nominal Ø mm: 1.200 Holder, machine side: DIN 6535-HA Cutting edge length: 2.000 Reach length: 12.000 Corner chamfer: 0.025 Statistical goods number: 82077010
