Guhring Metric Endmill 3 Flute Carbide Fire Coat

Description

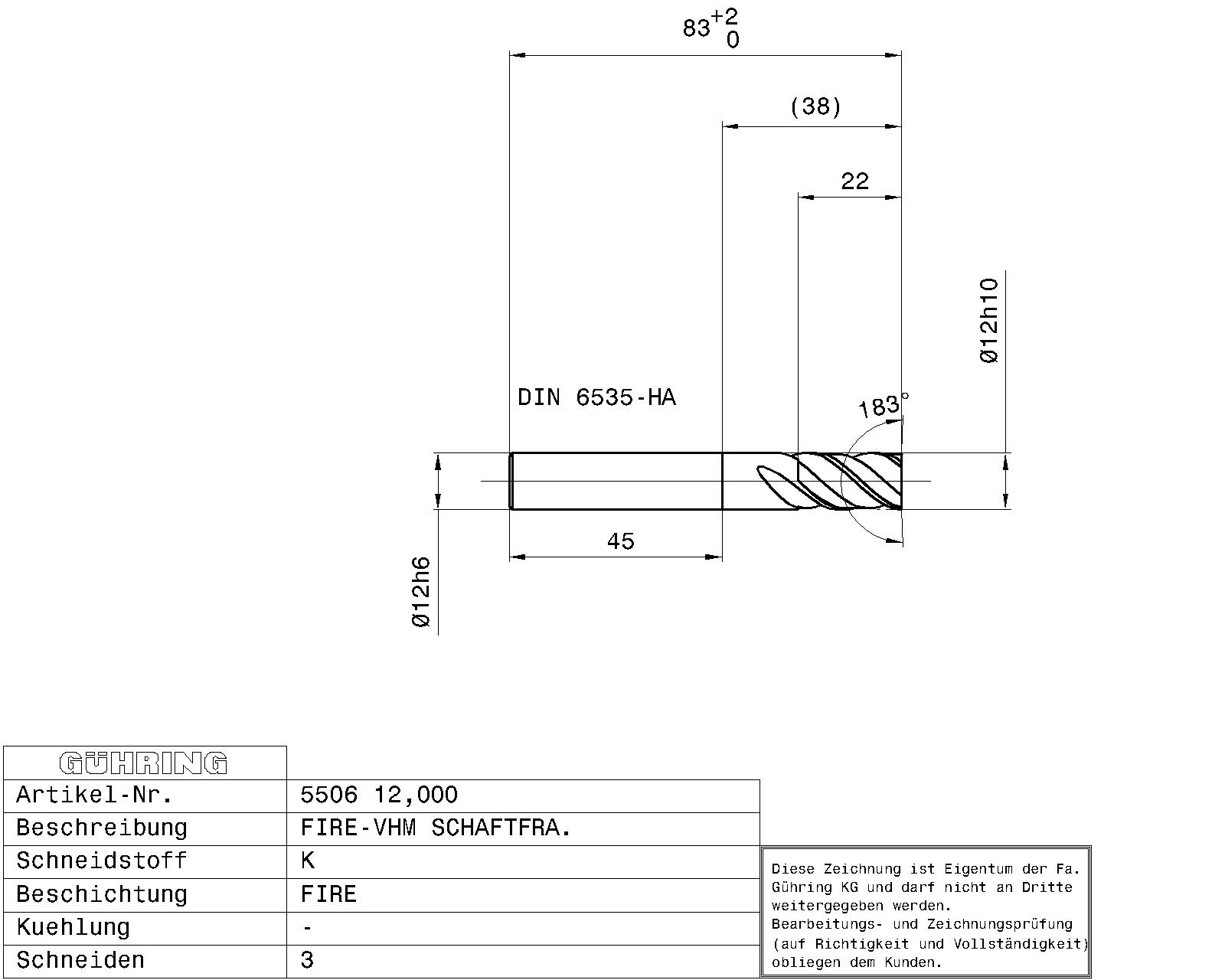

Slot drills GH 100 U (3-fluted) / Ø 12.000 mm / h10 / DIN 6527L / Solid carbide / FIRE / Type: NH / Form: A / Cutting direction: right-hand

Weight	0.1150 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: DIN 6527L Surface: FIRE Discount group: 157 Type: 5506 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 3 Form: A Helix angle: 45 Code no.: 12.000 Weight: 0.115 Total length: 83.000 Groove length: 31.000 Usable length: 38.000 Shank Ø: 12.000 Nominal Ø mm: 12.000 Cutting edge length: 22.000 Reach length: 38.000 Corner chamfer: 0.180 Statistical goods number: 82077010
