Guhring Metric Endmill 3 Flute Carbide Fire Coat

Description

Mini slot drills (3-fluted) / Ø 8.000 mm / e8 / DIN 6535-HB / Company std. / Solid carbide / FIRE / Type: NH / Cutting direction: right-hand

Weight	0.0340 kg

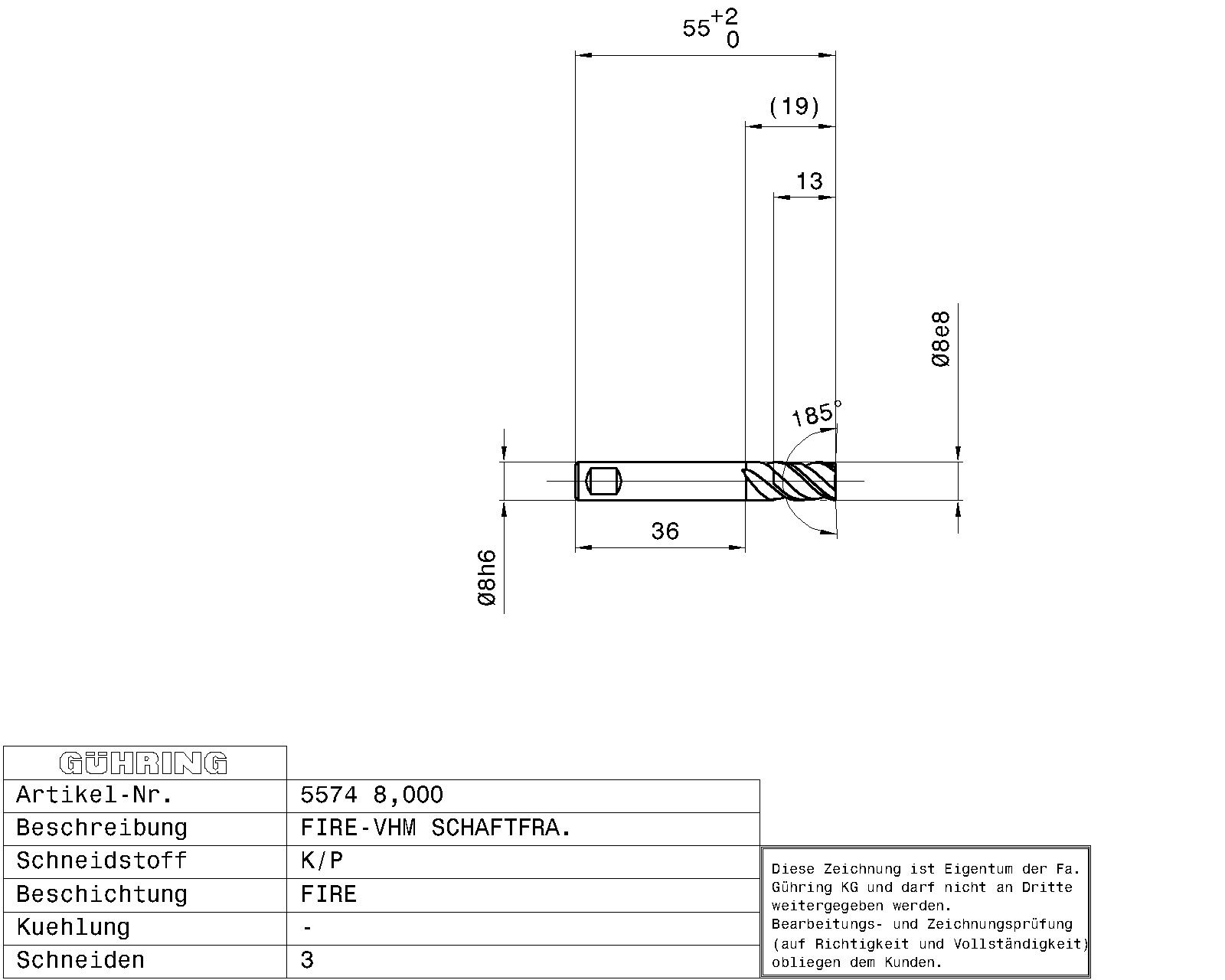

Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA/HB Nominal Ø tolerance field: e8 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5574 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 3 Helix angle: 45 Code no.: 8.000 Weight: 0.034 Total length: 55.000 Groove length: 20.000 Usable length: 18.900 Shank Ø: 8.000 Nominal Ø mm: 8.000 Holder, machine side: DIN 6535-HB Cutting edge length: 13.000 Reach length: 19.000 Corner chamfer: 0.100 Statistical goods number: 82077010
