Guhring Metric Endmill 4 Flute Carbide Fire Coat

Description

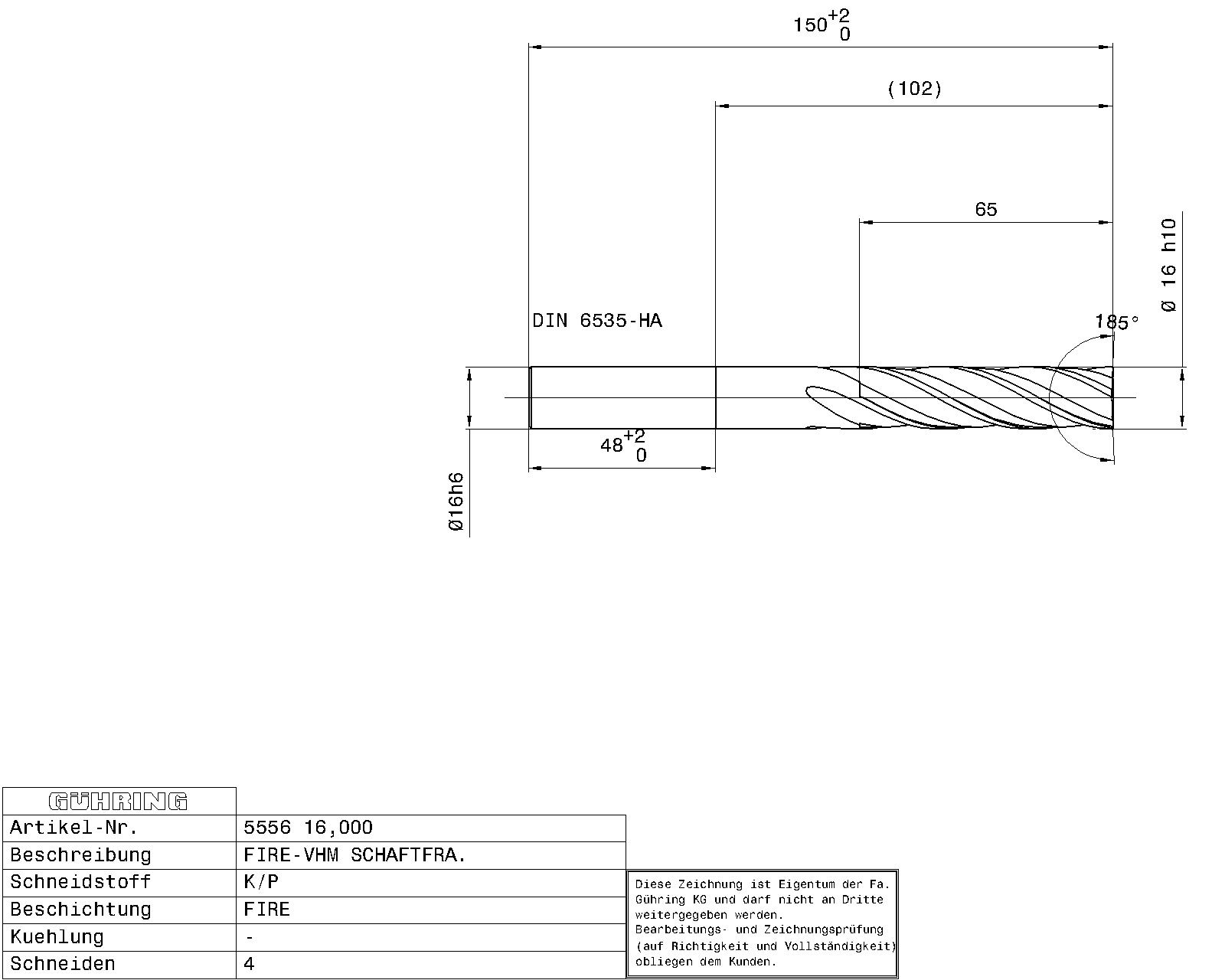

End mills XL (4-fluted) / Ø 16.000 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Form: A / Cutting direction: right-hand

Weight	0.3540 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5556 Cutting direction: right-hand Type: N Material: Solid carbide No of cutting edges: 4 Form: A Helix angle: 30 Code no.: 16.000 Weight: 0.354 Total length: 150.000 Groove length: 79.720 Usable length: 102.000 Shank Ø: 16.000 Nominal Ø mm: 16.000 Cutting edge length: 65.000 Reach length: 102.000 Corner chamfer: 0.150 Statistical goods number: 82077010
