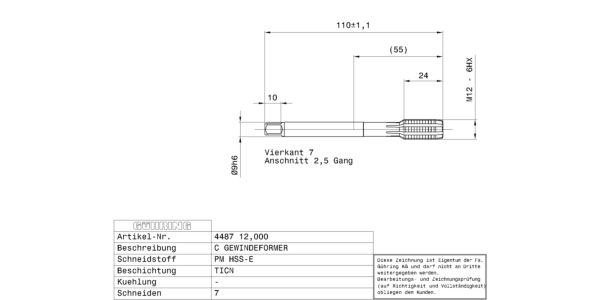

Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 376
Surface: TiCN
Discount group: 208
Type: 4487
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: M
Tolerance class thread: 6HX
Hole type: Through, Blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 12.000
Weight: 0.064
Number of cutting edges: 7
Total length: 110.000
Thread length: 24.000
Groove length: 35.000
Usable length: 49.000
Norm 2: DIN 2174
Wrench opening: 7.000
Neck Ø: 8.800
Core hole Ø: 11.20
Shank Ø: 9.000
Nominal dimension thread: M12
Pitch: 1.750
External Ø: 12.080
Reach length: 55.000
Body Ø: 9.000
Statistical goods number: 82074010
