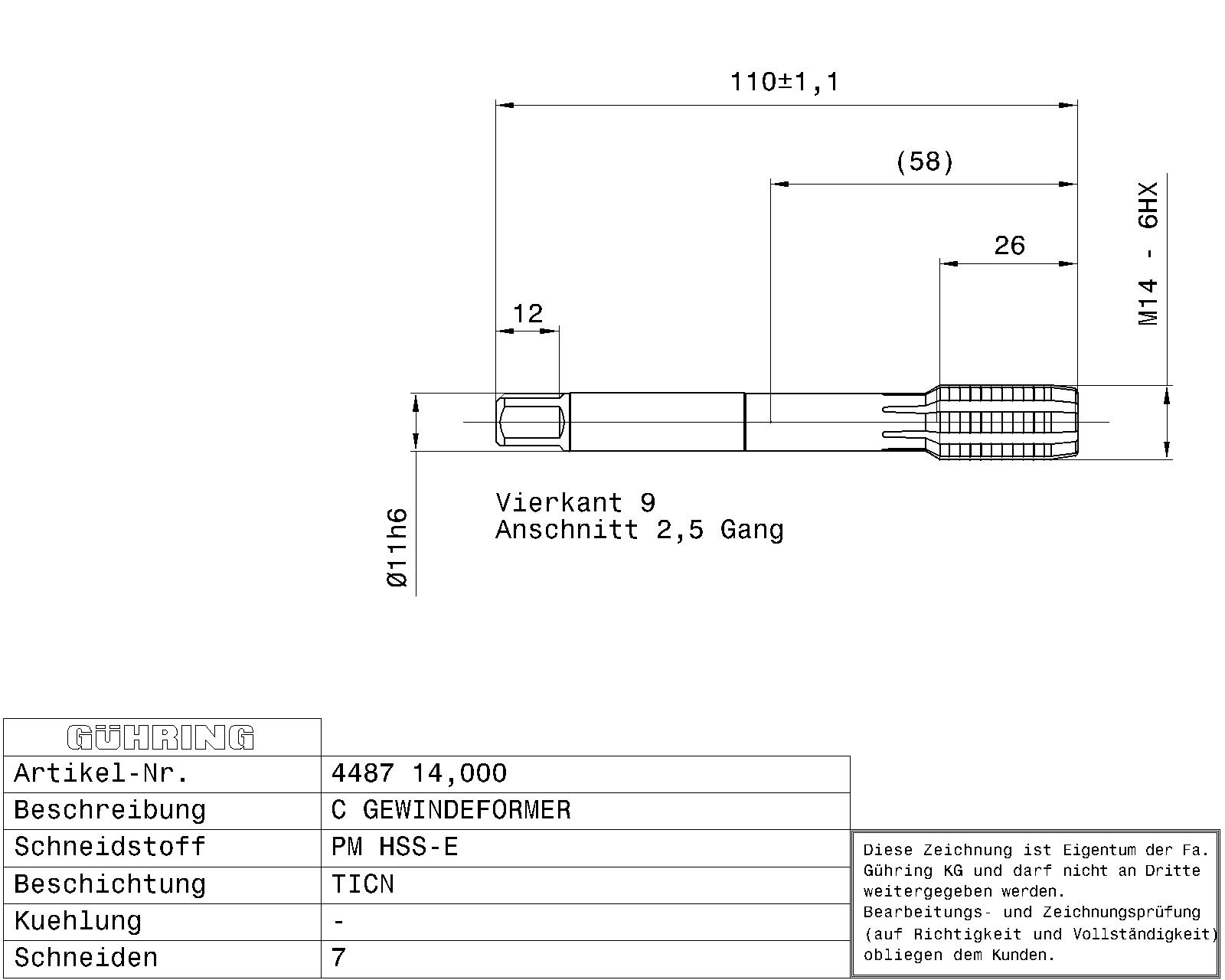

Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 376
Surface: TiCN
Discount group: 208
Type: 4487
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: M
Tolerance class thread: 6HX
Hole type: Through, Blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 14.000
Weight: 0.087
Number of cutting edges: 7
Total length: 110.000
Thread length: 26.000
Groove length: 37.000
Usable length: 53.000
Norm 2: DIN 2174
Wrench opening: 9.000
Neck Ø: 10.800
Core hole Ø: 13.10
Shank Ø: 11.000
Nominal dimension thread: M14
Pitch: 2.000
External Ø: 14.080
Reach length: 58.000
Body Ø: 11.000
Statistical goods number: 82074010
