Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated IC

Product Code: 4485 12,000

$331.95$301.77 Ex. GST

Product Code: 4485 12,000 SKU 4485 12,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated IC

Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated IC - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

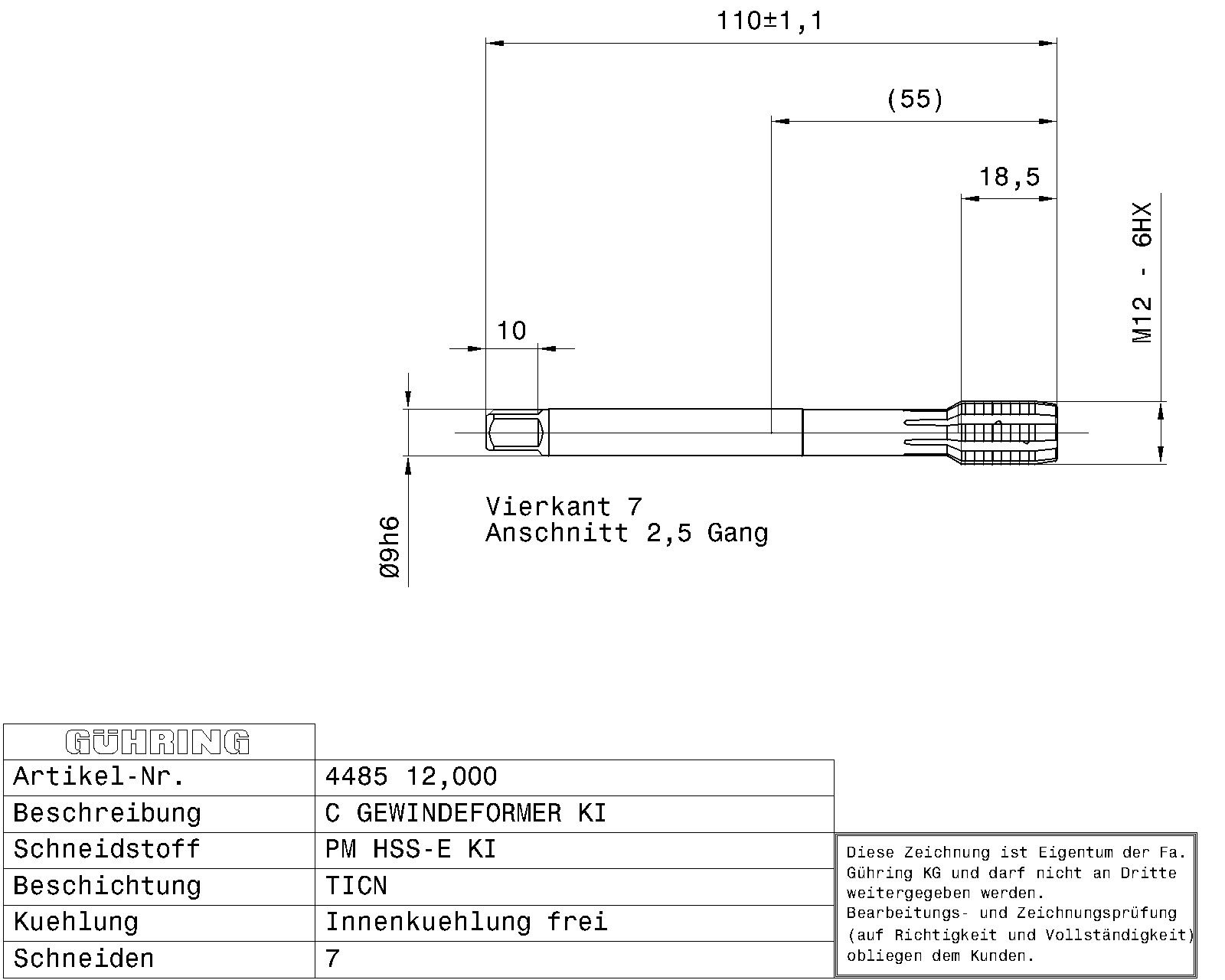

Fluteless machine taps for ISO metric threads M12 / 6HX / 3xD / ~DIN 376 / DIN 2174 / HSS-E-PM / TiCN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: N ≥ 7% Si

Additional information

Weight	0.01 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: With Norm: DIN 376 Surface: TiCN Discount group: 208 Type: 4485 Cutting direction: Right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: Through-, blind hole Groove: With oil grooves Chamfer lead length: 2-3 Code no.: 12.000 Weight: 0.010 No of cutting edges: 7 Total length: 110.000 Thread length: 18.500 Groove length: 29.500 Usable length: 49.000 Norm 2: DIN 2174 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 11.20 Shank Ø: 9.000 Nominal dimension thread: M12 Pitch: 1.750 External Ø: 12.080 Reach length: 55.000 Body Ø: 9.000 Statistical goods number: 82074010

Brand

Guhring
