Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated IC

Connection code machine side: Straight shank
Internal cooling: With
Norm: DIN 376
Surface: TiCN
Discount group: 208
Type: 4485
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: M
Tolerance class thread: 6HX
Hole type: Through-, blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 16.000
Weight: 0.096
No of cutting edges: 8

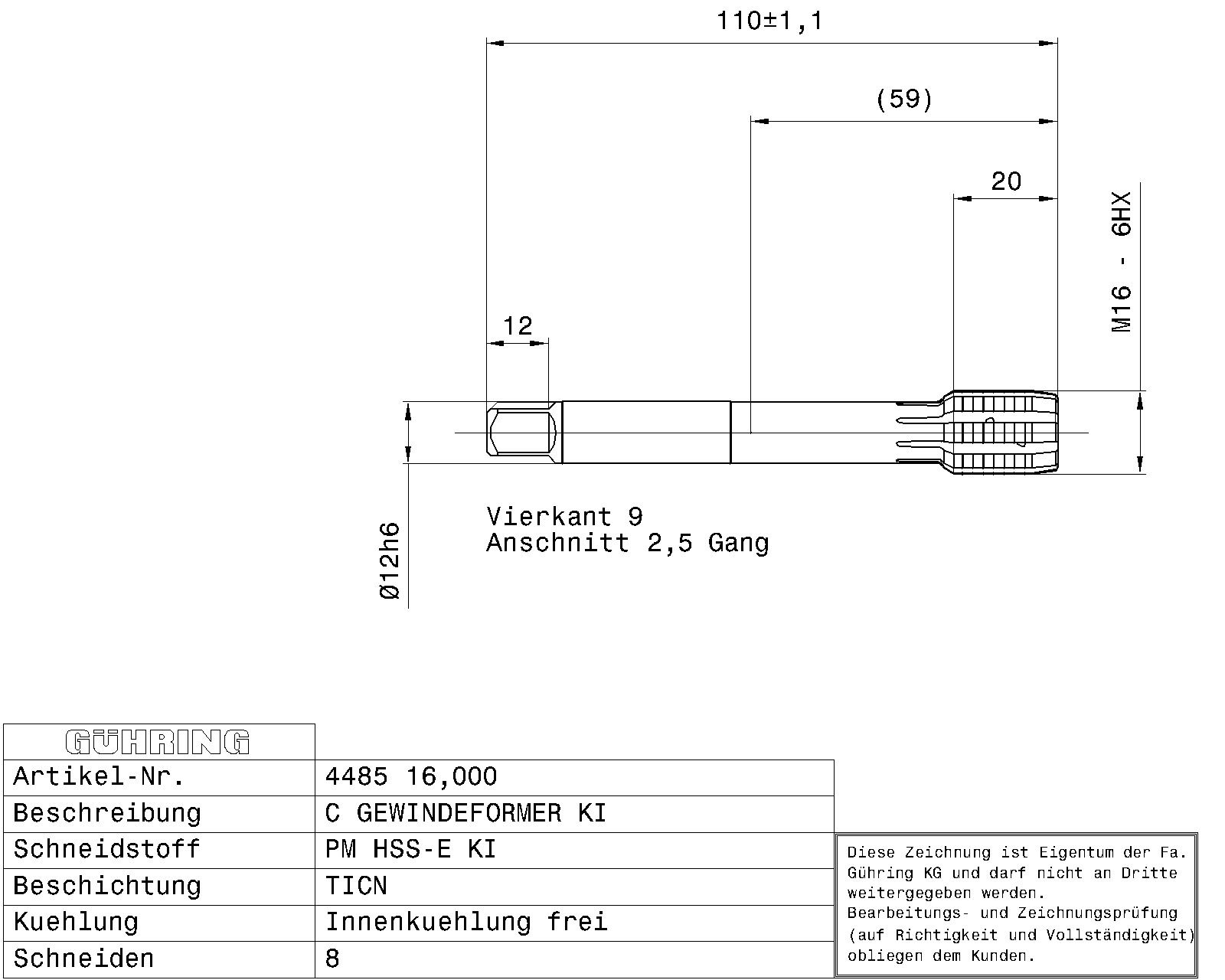

Total length: 110.000
Thread length: 20.000
Groove length: 31.000
Usable length: 54.000
Norm 2: DIN 2174
Wrench opening 1: 9.000
Neck Ø: 11.800
Core hole Ø: 15.10
Shank Ø: 12.000
Nominal dimension thread: M16
Pitch: 2.000
External Ø: 16.080
Reach length: 59.000
Body Ø: 12.000
Statistical goods number: 82074010
