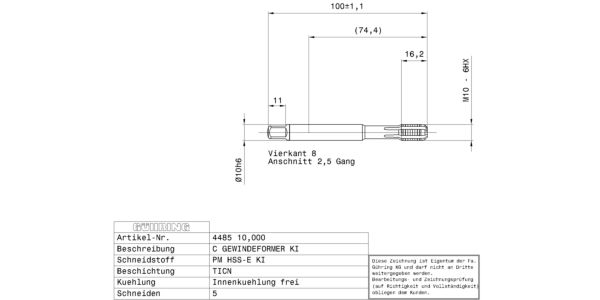

Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated IC

Connection code machine side: Straight shank
Internal cooling: With
Norm: DIN 371
Surface: TiCN
Discount group: 208
Type: 4485
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: M
Tolerance class thread: 6HX
Hole type: Through-, blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 10.000
Weight: 0.056
No of cutting edges: 5
Total length: 100.000
Thread length: 16.000
Groove length: 27.000
Usable length: 39.000
Norm 2: DIN 2174
Wrench opening 1: 8.000
Neck Ø: 8.100
Core hole Ø: 9.30
Shank Ø: 10.000
Nominal dimension thread: M10
Pitch: 1.500
External Ø: 10.070
Reach length: 77.000
Body Ø: 10.000
Statistical goods number: 82074010
