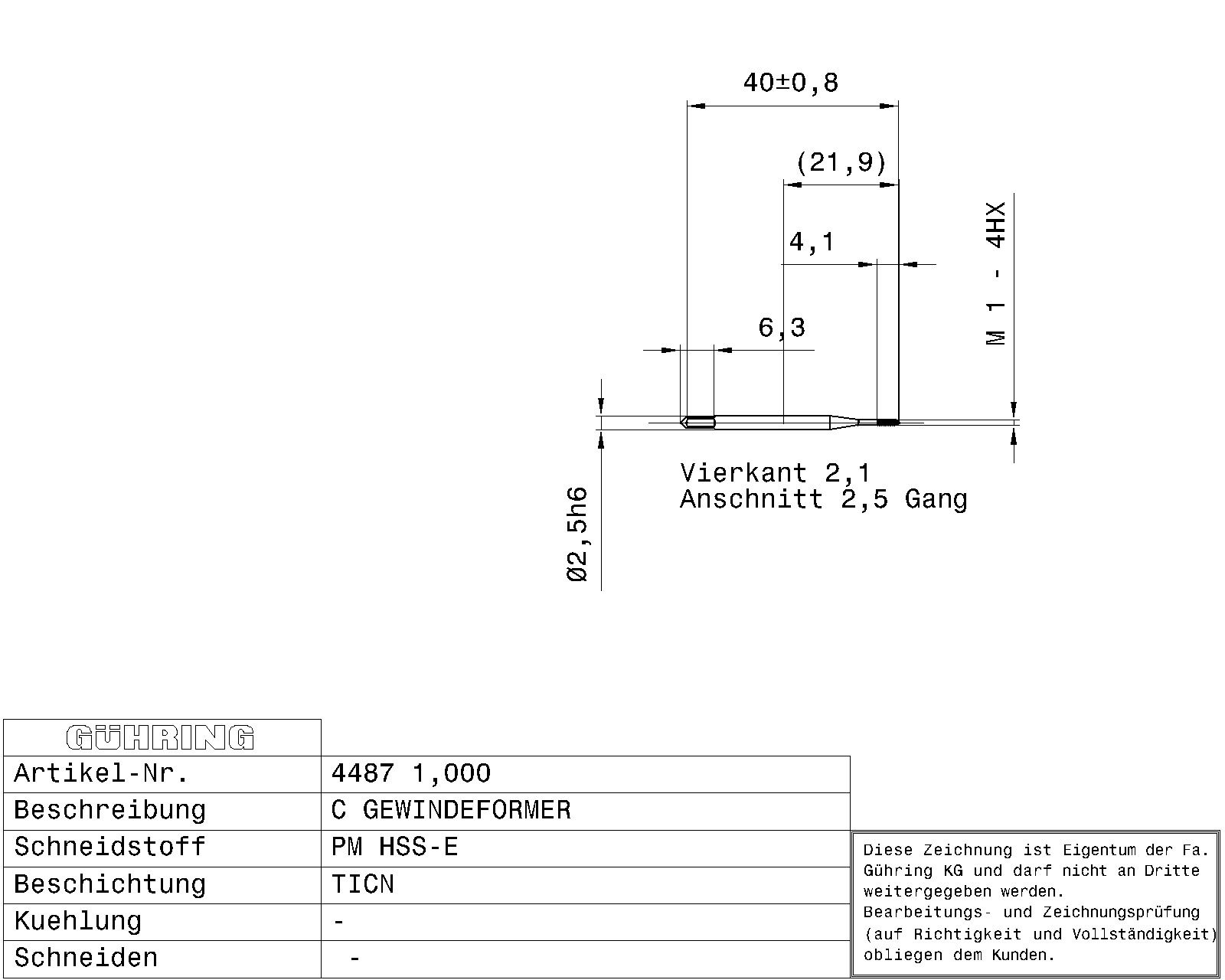

Guhring Metric Fluteless Taps HSS-E-PM TiCN Coated

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 371
Surface: TiCN
Discount group: 208
Type: 4487
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: M
Tolerance class thread: 4HX
Hole type: Through-, blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 1.000
Weight: 0.001
Total length: 40.000
Thread length: 4.000
Usable length: 4.000
Norm 2: DIN 2174
Wrench opening 1: 2.100
Core hole Ø: 0.90
Shank Ø: 2.500
Nominal dimension thread: M1
Pitch: 0.250
External Ø: 1.030
Reach length: 22.000
Body Ø: 2.500
Statistical goods number: 82074010
