Guhring Metric Fluteless Taps HSS-E TiN Coat

Product Code: 5598 10,000

$154.75$140.68 Ex. GST

Product Code: 5598 10,000 SKU 5598 10,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Fluteless Taps HSS-E TiN Coat

Guhring Metric Fluteless Taps HSS-E TiN Coat - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

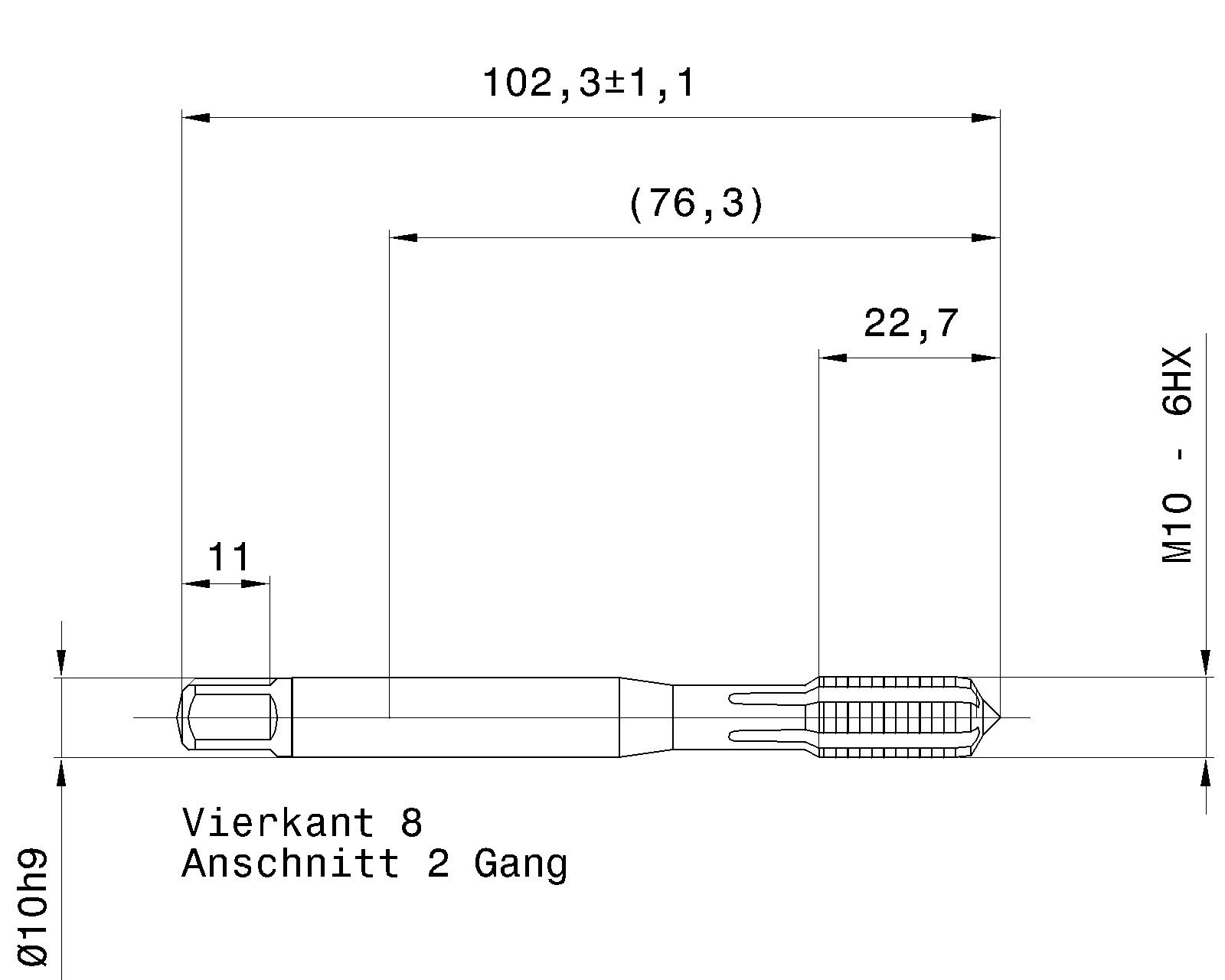

Fluteless machine taps for ISO metric threads M10 / 6HX / 3xD / ~DIN 371 / DIN 2174 / HSS-E / TiN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Execution: with oil grooves ≥ M3

Additional information

Weight	0.0290 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 371 Surface: TiN Discount group: 156 Type: 5598 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Chamfer lead length: 2-3 Code no.: 10.000 Weight: 0.029 No of cutting edges: 5 Total length: 100.000 Thread length: 20.000 Groove length: 31.000 Usable length: 39.000 Norm 2: DIN 2174 Wrench opening 1: 8.000 Neck Ø: 8.100 Core hole Ø: 9.30 Shank Ø: 10.000 Nominal dimension thread: M10 Pitch: 1.500 External Ø: 10.070 Reach length: 77.000 Statistical goods number: 82074010

Brand

Guhring
