Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated

Product Code: 4218 4,000

$97.81$88.92 Ex. GST

Product Code: 4218 4,000 SKU 4218 4,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

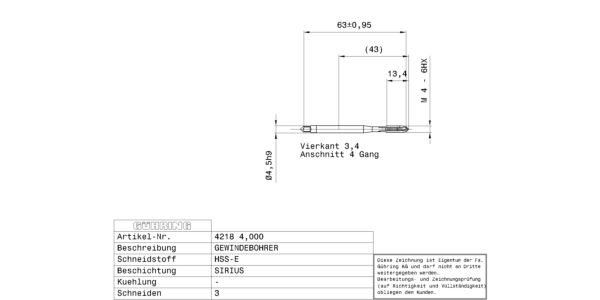

Machine taps for ISO metric threads M4 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.008 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Sirius Discount group: 103 Type: 4218 Cutting direction: right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: blue ring Threads: M Tolerance class thread: 6HX Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 4.000 Weight: 0.008 No of cutting edges: 3 Total length: 63.000 Thread length: 12.000 Groove length: 17.000 Usable length: 21.000 Norm 2: DIN 2184-1 Wrench opening 1: 3.400 Neck Ø: 3.000 Core hole Ø: 3.30 Shank Ø: 4.500 Nominal dimension thread: M4 Pitch: 0.700 External Ø: 4.050 Shank length: 36.700 Reach length: 43.000 Statistical goods number: 82074010

Brand

Guhring
