Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1

Product Code: 4640 14,000

$311.05$282.77 Ex. GST

Product Code: 4640 14,000 SKU 4640 14,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

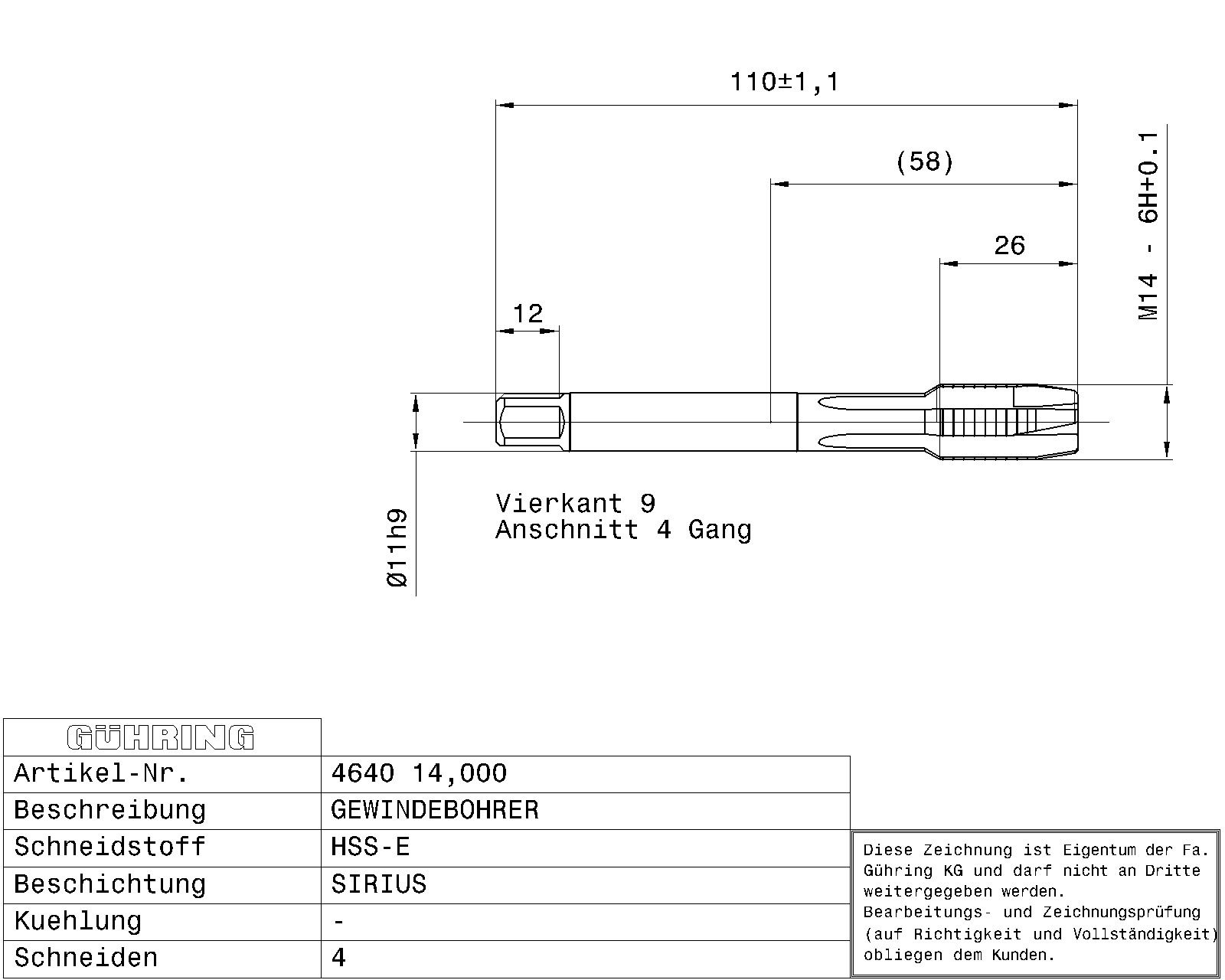

Machine taps for ISO metric threads M14 / 6H+0,1 / 3xD / DIN 376 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.082 kg
Dimensions
barcode	9046400140000
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 376 Surface: Sirius Discount group: 103 Type: 4640 Cutting direction: Right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Blue ring Threads: M Tolerance class thread: 6H+0,1 Hole type: Through hole Groove: Straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 14.000 Weight: 0.082 Number of cutting edges: 4 Total length: 110.000 Thread length: 26.000 Groove length: 49.000 Usable length: 53.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 10.800 Core hole Ø: 12.00 Shank Ø: 11.000 Nominal dimension thread: M14 Pitch: 2.000 External Ø: 14.190 Reach length: 58.000 Statistical goods number: 82074010

Brand

Guhring
