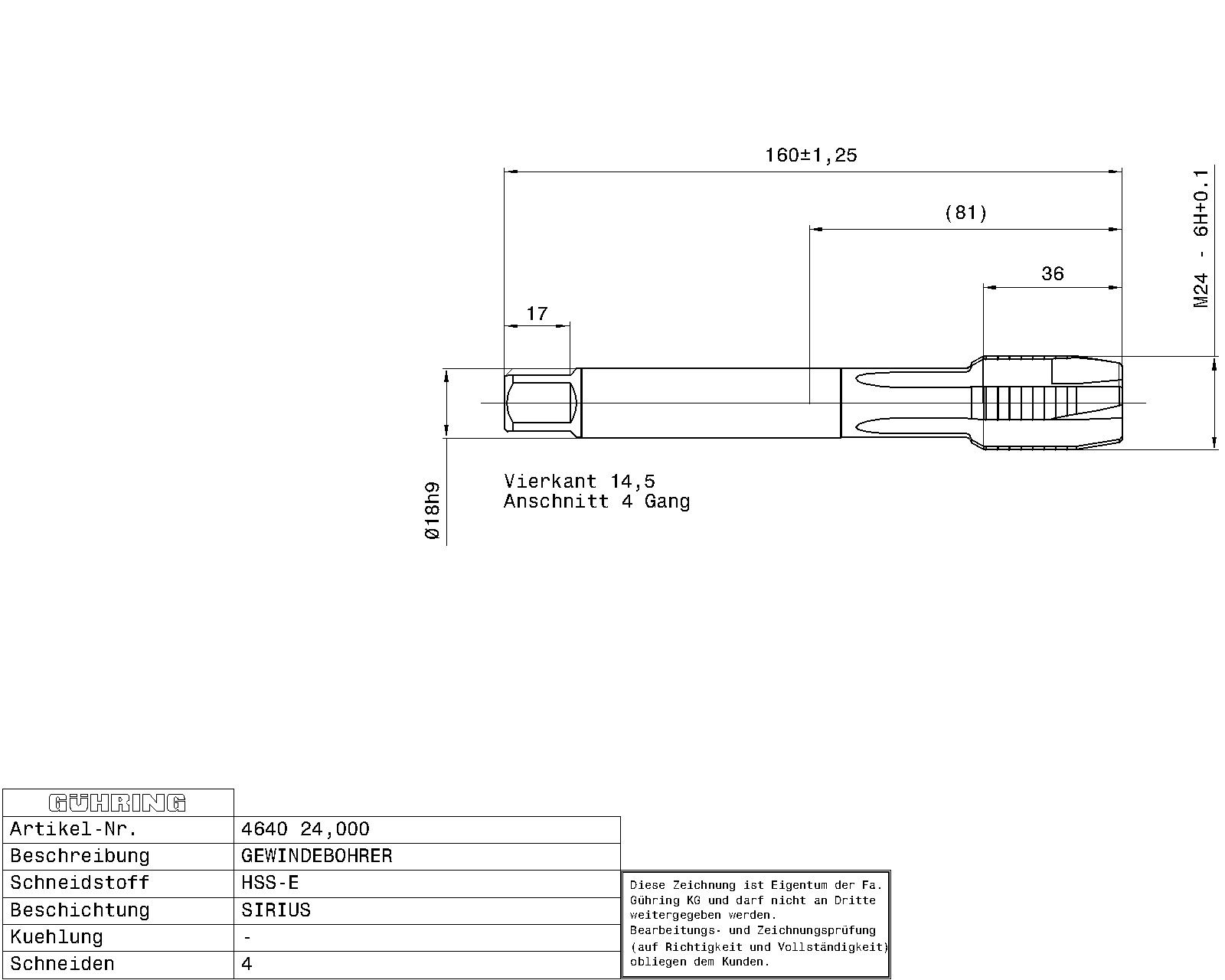

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 376
Surface: Sirius
Discount group: 103
Type: 4640
Cutting direction: Right-hand
Type: VA
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: Blue ring
Threads: M
Tolerance class thread: 6H+0,1
Hole type: Through hole
Groove: Straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 24.000
Weight: 0.320
Number of cutting edges: 4
Total length: 160.000
Thread length: 36.000
Groove length: 69.000
Usable length: 73.000
Norm 2: DIN 2184-1
Wrench opening 1: 14.500
Neck Ø: 17.800
Core hole Ø: 21.00
Shank Ø: 18.000
Nominal dimension thread: M24
Pitch: 3.000
External Ø: 24.210
Reach length: 81.000
Statistical goods number: 82074010
