Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1

Product Code: 4640 2,500

$116.75$106.14 Ex. GST

Product Code: 4640 2,500 SKU 4640 2,500 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

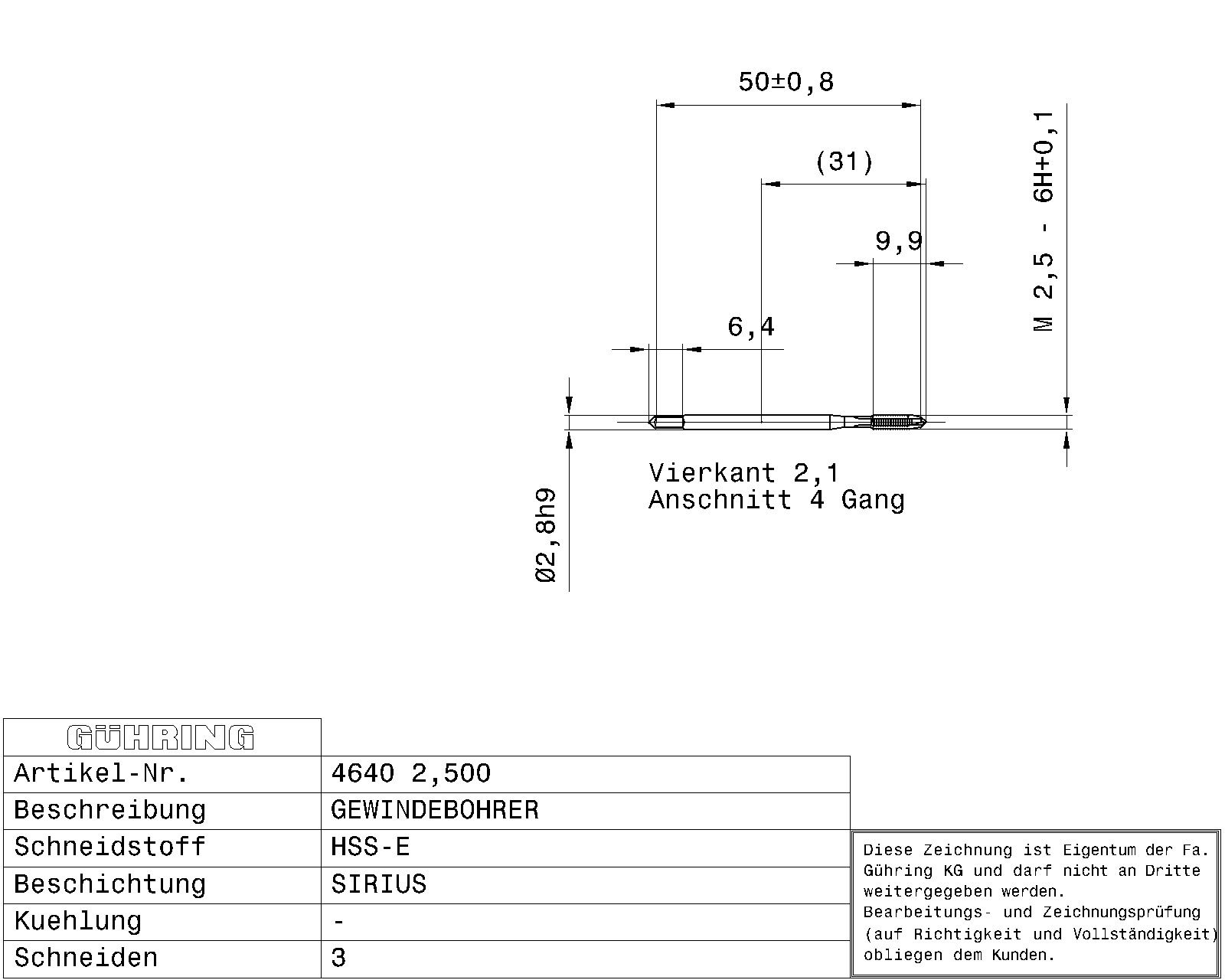

Machine taps for ISO metric threads M2,5 / 6H+0,1 / 3xD / DIN 371 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.004 kg
Dimensions
barcode	9046400025000
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 371 Surface: Sirius Discount group: 103 Type: 4640 Cutting direction: Right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Blue ring Threads: M Tolerance class thread: 6H+0,1 Hole type: Through hole Groove: Straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 2.500 Weight: 0.004 Number of cutting edges: 3 Total length: 50.000 Thread length: 9.000 Groove length: 12.500 Usable length: 14.500 Norm 2: DIN 2184-1 Wrench opening 1: 2.100 Neck Ø: 2.000 Core hole Ø: 2.05 Shank Ø: 2.800 Nominal dimension thread: M2.5 Pitch: 0.450 External Ø: 2.640 Reach length: 31.000 Statistical goods number: 82074010

Brand

Guhring
