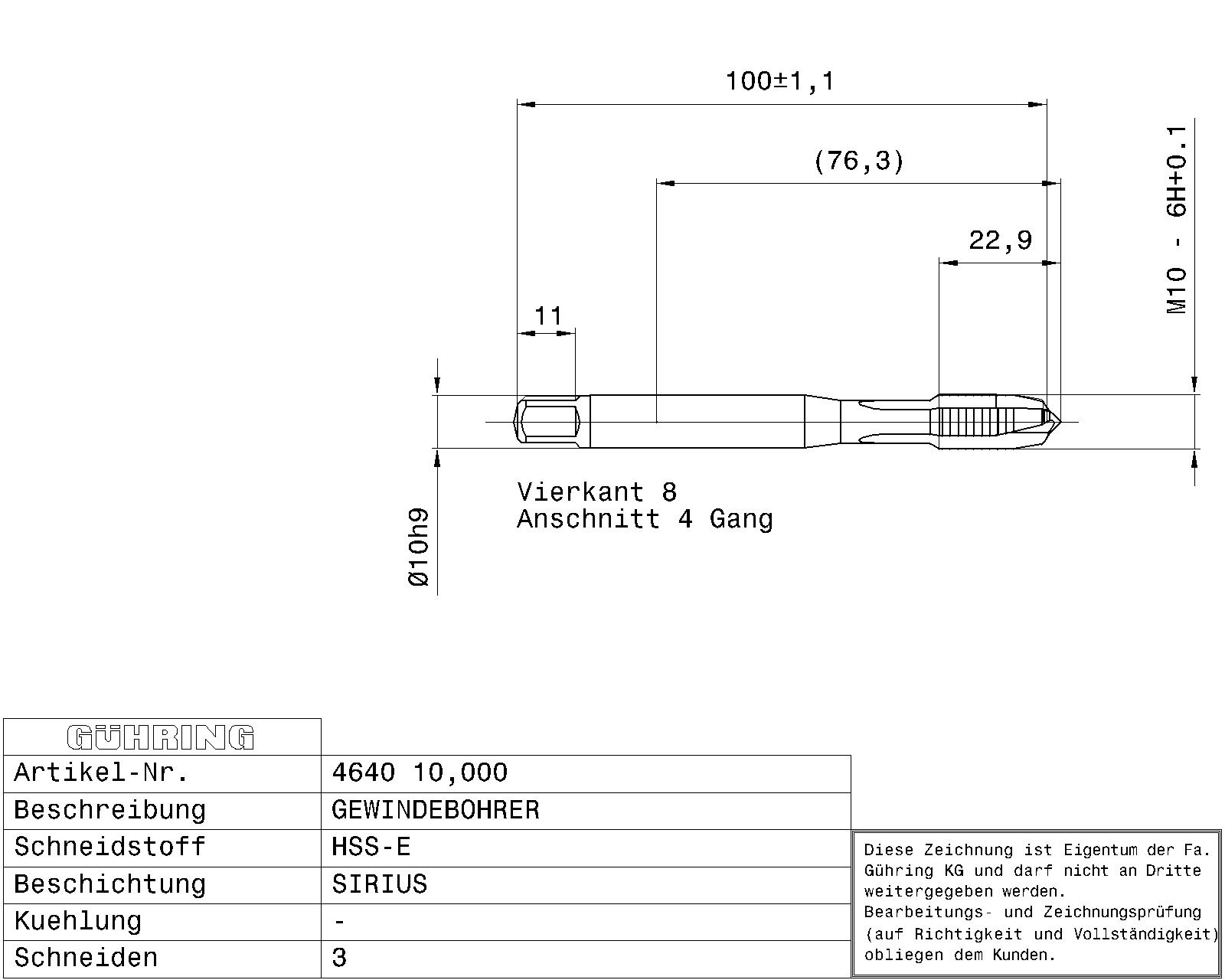

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated 6H +.1

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 371
Surface: Sirius
Discount group: 103
Type: 4640
Cutting direction: Right-hand
Type: VA
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: Blue ring
Threads: M
Tolerance class thread: 6H+0,1
Hole type: Through hole
Groove: Straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 10.000
Weight: 0.012
Number of cutting edges: 3
Total length: 100.000
Thread length: 20.000
Groove length: 35.000
Usable length: 39.000
Norm 2: DIN 2184-1
Wrench opening 1: 8.000
Neck Ø: 8.100
Core hole Ø: 8.50
Shank Ø: 10.000
Nominal dimension thread: M10
Pitch: 1.500
External Ø: 10.170
Reach length: 77.000
Statistical goods number: 82074010
