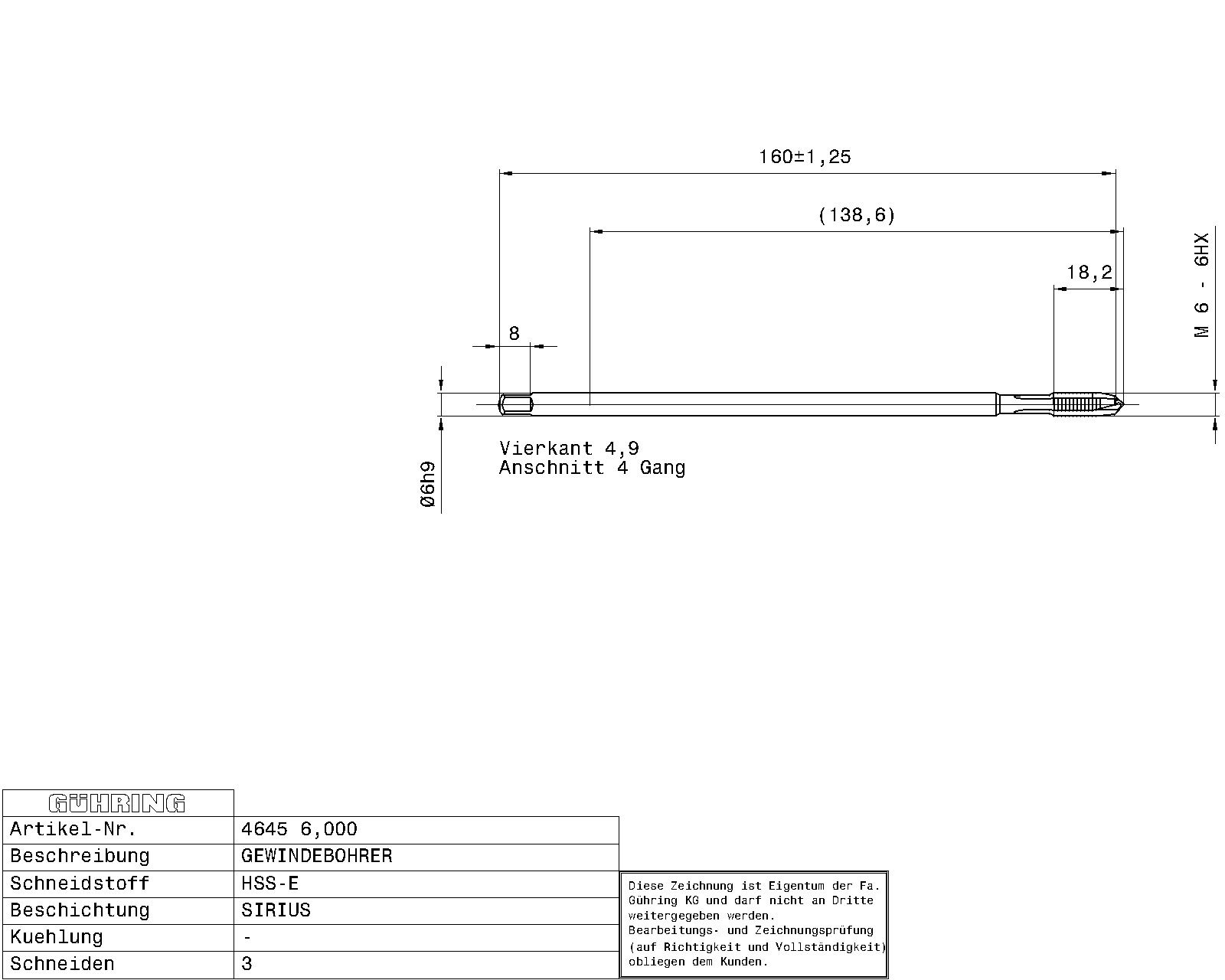

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated long

Connection code machine side: straight shank
Internal cooling: without
Norm: Company std.
Surface: Sirius
Discount group: 103
Type: 4645
Cutting direction: right-hand
Type: VA
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: blue ring
Threads: M
Tolerance class thread: 6HX
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 6.000
Weight: 0.039
No of cutting edges: 3
Total length: 160.000
Thread length: 16.000
Groove length: 26.000
Usable length: 30.000
Wrench opening 1: 4.900
Neck Ø: 4.700
Core hole Ø: 5.00
Shank Ø: 6.000
Nominal dimension thread: M6
Pitch: 1.000
External Ø: 6.060
Reach length: 139.000
Statistical goods number: 82074010
