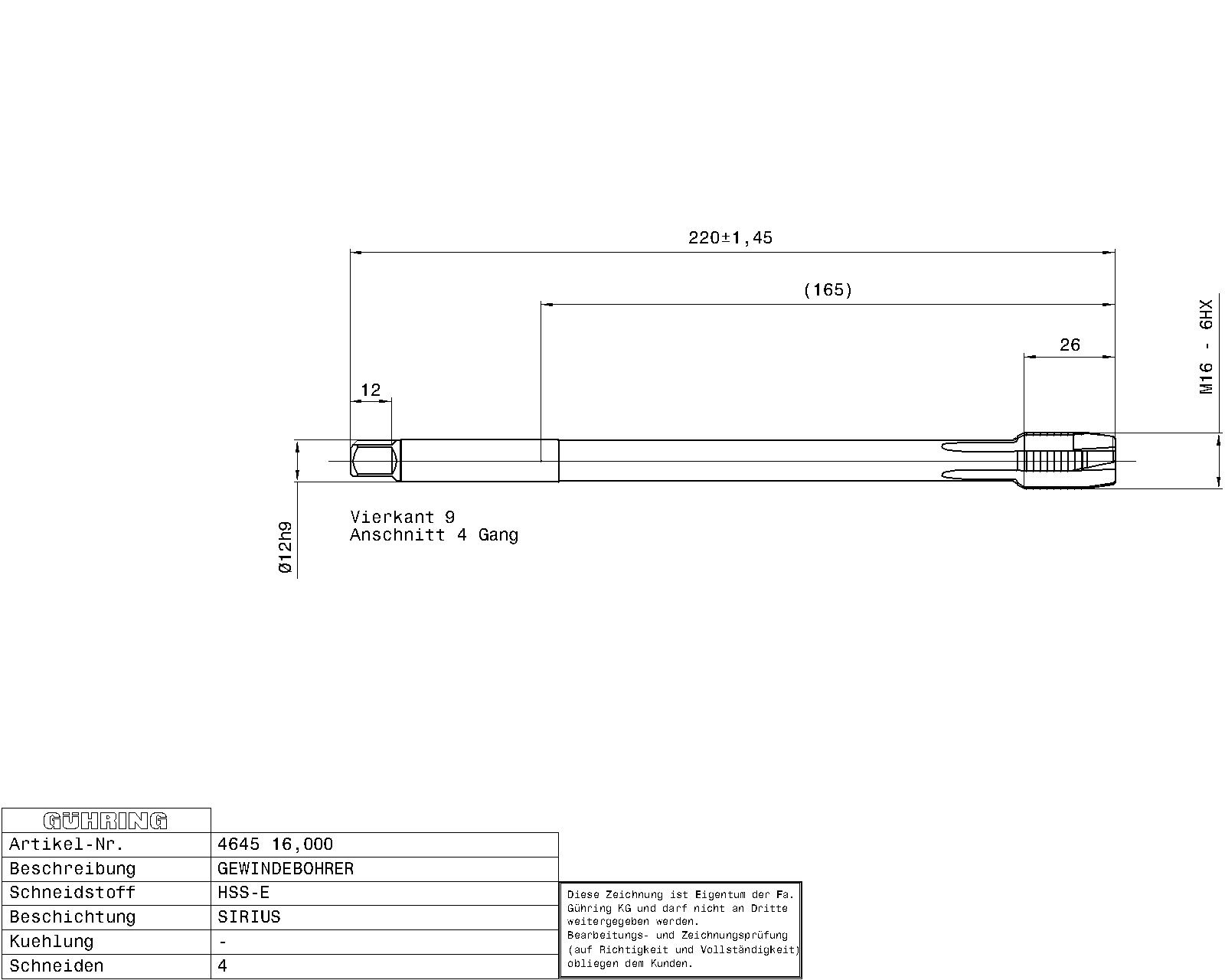

Guhring Metric Gun Nose Taps HSS-E 6HX SIRIUS Coated long

Connection code machine side: straight shank
Internal cooling: without
Norm: Company std.
Surface: Sirius
Discount group: 103
Type: 4645
Cutting direction: right-hand
Type: VA
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: blue ring
Threads: M
Tolerance class thread: 6HX
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 16.000
Weight: 0.206
No of cutting edges: 4
Total length: 220.000
Thread length: 26.000
Groove length: 50.000
Usable length: 160.000
Wrench opening 1: 9.000
Neck Ø: 11.800
Core hole Ø: 14.00
Shank Ø: 12.000
Nominal dimension thread: M16
Pitch: 2.000
External Ø: 16.090
Reach length: 165.000
Body Ø: 11.800
Statistical goods number: 82074010
