Guhring Metric Gun Nose Taps HSS-E Black band

Product Code: 5557 10,000

$72.57$65.97 Ex. GST

Product Code: 5557 10,000 SKU 5557 10,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E Black band

Guhring Metric Gun Nose Taps HSS-E Black band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

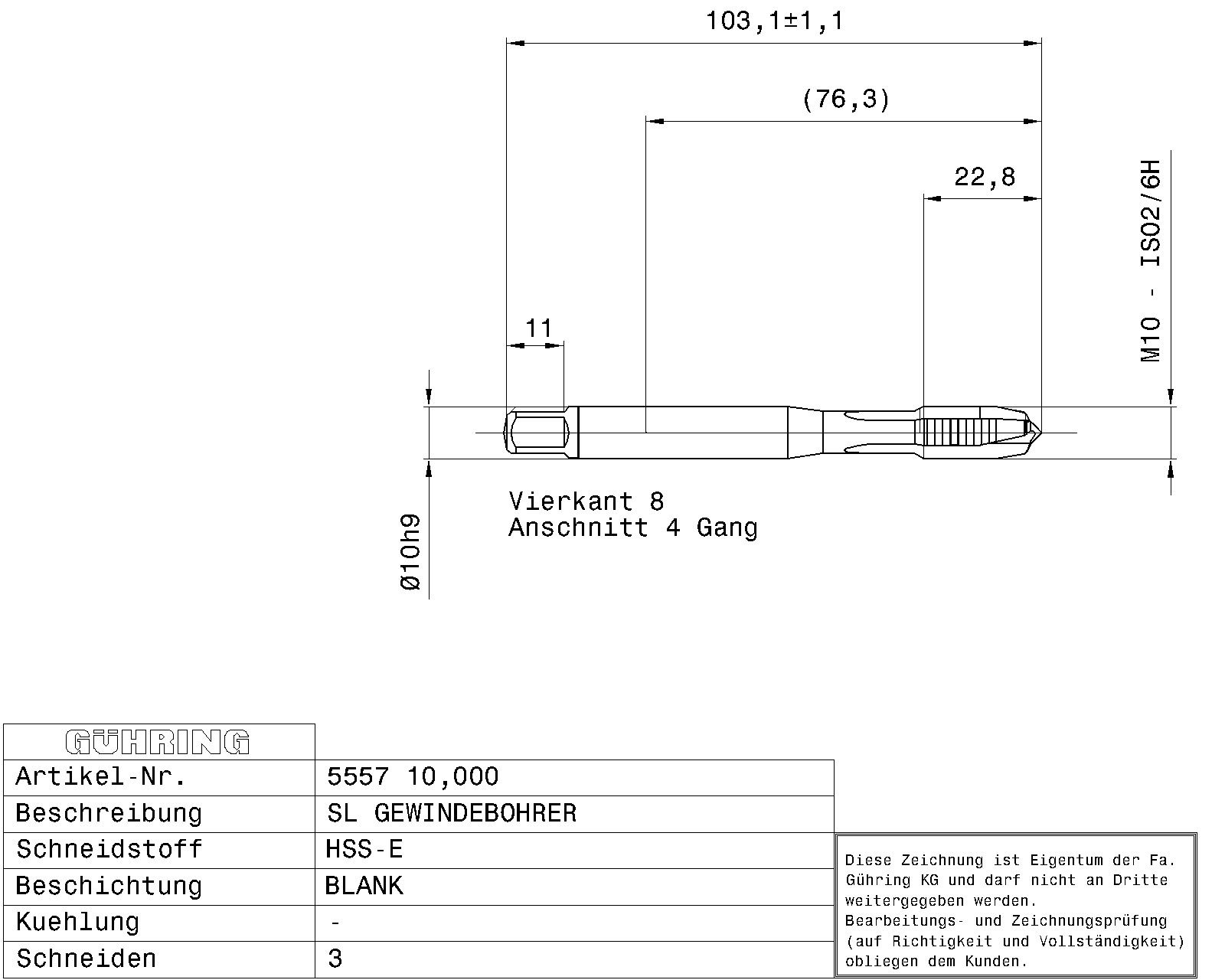

Machine taps for ISO metric threads M10 / ISO2/6H / 3xD / DIN 371 / DIN 2184-1 / HSS-E / bright / Type: Al / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0530 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: bright Discount group: 156 Type: 5557 Cutting direction: right-hand Type: Al Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Black ring Threads: M Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 10.000 Weight: 0.053 No of cutting edges: 3 Total length: 100.000 Thread length: 20.000 Groove length: 35.000 Usable length: 39.000 Norm 2: DIN 2184-1 Wrench opening 1: 8.000 Neck Ø: 8.100 Core hole Ø: 8.50 Shank Ø: 10.000 Nominal dimension thread: M10 Pitch: 1.500 External Ø: 10.070 Reach length: 77.000 Statistical goods number: 82074010

Brand

Guhring
