Guhring Metric Gun Nose Taps HSS-E Red Band

Product Code: 5558 6,000

$52.01$47.28 Ex. GST

Product Code: 5558 6,000 SKU 5558 6,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E Red Band

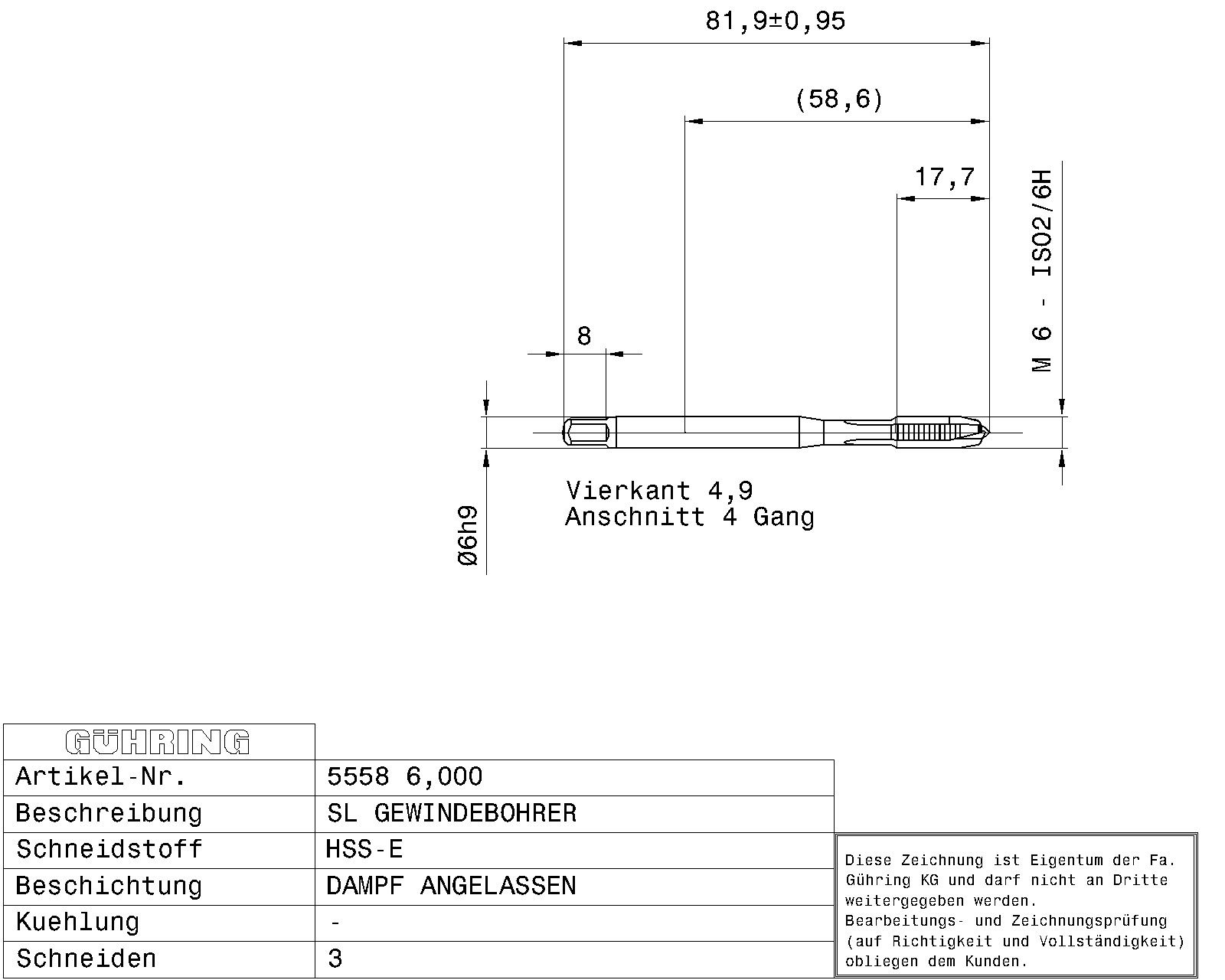

Guhring Metric Gun Nose Taps HSS-E Red Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M6 / ISO2/6H / 3xD / DIN 371 / DIN 2184-1 / HSS-E / steam tempered / Type: H / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0170 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: steam tempered Discount group: 156 Type: 5558 Cutting direction: right-hand Type: H Material: HSS-E Additional information: Internal threading Form: B Coloured ring: red ring Threads: M Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 6.000 Weight: 0.017 No of cutting edges: 3 Total length: 80.000 Thread length: 16.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Neck Ø: 4.700 Core hole Ø: 5.00 Shank Ø: 6.000 Nominal dimension thread: M6 Pitch: 1.000 External Ø: 6.060 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
