Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Metric Gun Nose Taps HSS-E Red Band

Guhring Metric Gun Nose Taps HSS-E Red Band

Product Code: 816 12,000

$117.91$107.19 Ex. GST

Product Code: 816 12,000 SKU 816 12,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E Red Band

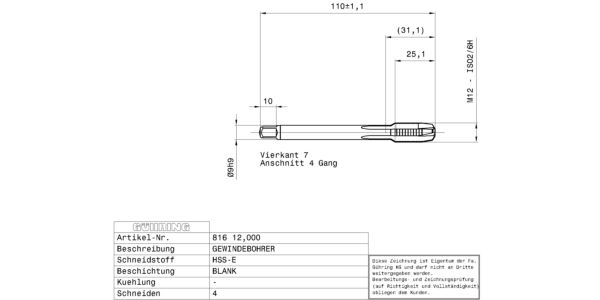

Guhring Metric Gun Nose Taps HSS-E Red Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M12 / ISO2/6H / 3xD / DIN 376 / DIN 2184-1 / HSS-E / bright / Type: H / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0510 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: bright Discount group: 103 Type: 816 Cutting direction: right-hand Type: H Material: HSS-E Additional information: Internal threading Form: B Coloured ring: red ring Threads: M Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 12.000 Weight: 0.051 No of cutting edges: 4 Total length: 110.000 Thread length: 24.000 Groove length: 45.000 Usable length: 49.000 Norm 2: DIN 2184-1 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 10.20 Shank Ø: 9.000 Nominal dimension thread: M12 Pitch: 1.750 External Ø: 12.080 Reach length: 34.000 Statistical goods number: 82074010

Brand

Guhring
