Guhring Metric Gun Nose Taps HSS-E White band

Product Code: 5550 6,000

$48.24$43.85 Ex. GST

Product Code: 5550 6,000 SKU 5550 6,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Nose Taps HSS-E White band

Guhring Metric Gun Nose Taps HSS-E White band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

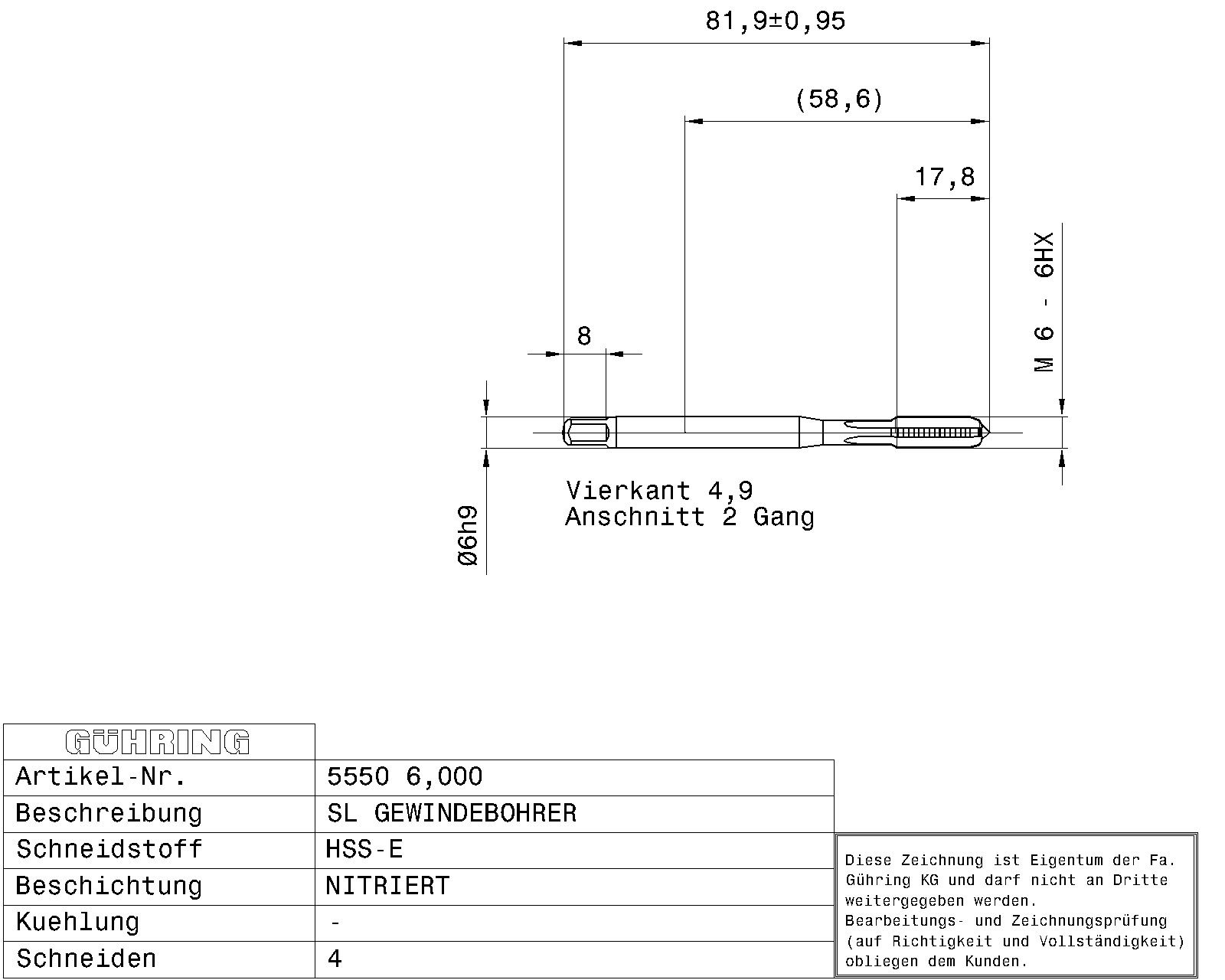

Machine taps for ISO metric threads M6 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / nitrided / Type: GG / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.0170 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: nitrided Discount group: 156 Type: 5550 Cutting direction: right-hand Type: GG Material: HSS-E Additional information: Internal threading Form: C Coloured ring: white ring Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 6.000 Weight: 0.017 No of cutting edges: 4 Total length: 80.000 Thread length: 16.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Neck Ø: 4.700 Core hole Ø: 5.00 Shank Ø: 6.000 Nominal dimension thread: M6 Pitch: 1.000 External Ø: 6.060 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
