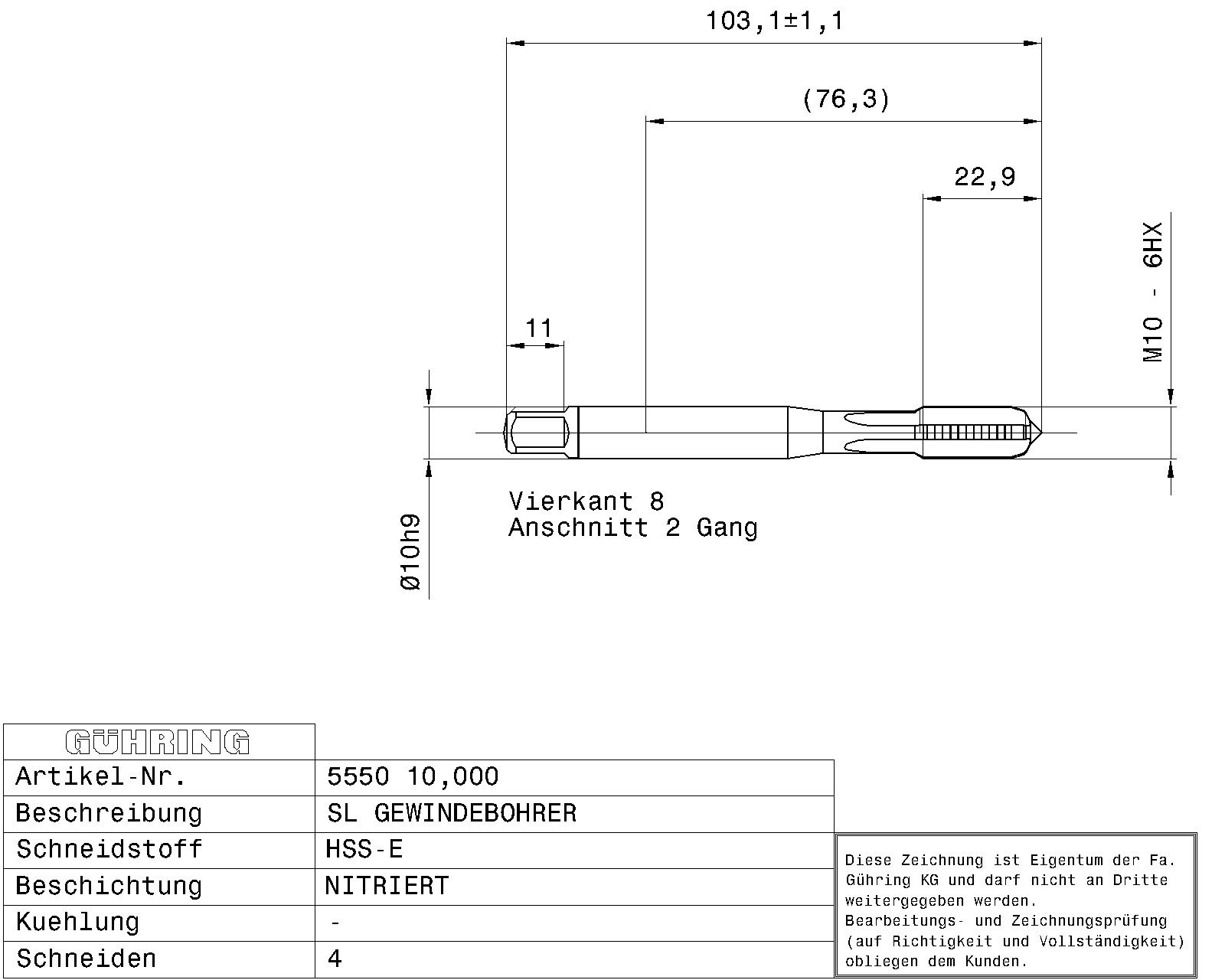

Guhring Metric Gun Nose Taps HSS-E White band

Connection code machine side: straight shank
Internal cooling: without
Norm: DIN 371
Surface: nitrided
Discount group: 156
Type: 5550
Cutting direction: right-hand
Type: GG
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: white ring
Threads: M
Tolerance class thread: 6HX
Hole type: through-, blind hole
Groove: straight-fluted cutting edges
Chamfer lead length: 2-3
Code no.: 10.000
Weight: 0.005
No of cutting edges: 4
Total length: 100.000
Thread length: 20.000
Groove length: 35.000
Usable length: 39.000
Norm 2: DIN 2184-1
Wrench opening 1: 8.000
Neck Ø: 8.100
Core hole Ø: 8.50
Shank Ø: 10.000
Nominal dimension thread: M10
Pitch: 1.500
External Ø: 10.070
Reach length: 77.000
Statistical goods number: 82074010
