Guhring Metric Gun Tap-TiN Coated HSS-E-PM Gold Band

Product Code: 5736 8,000

$73.40$66.73 Ex. GST

Product Code: 5736 8,000 SKU 5736 8,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Tap-TiN Coated HSS-E-PM Gold Band

Guhring Metric Gun Tap-TiN Coated HSS-E-PM Gold Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

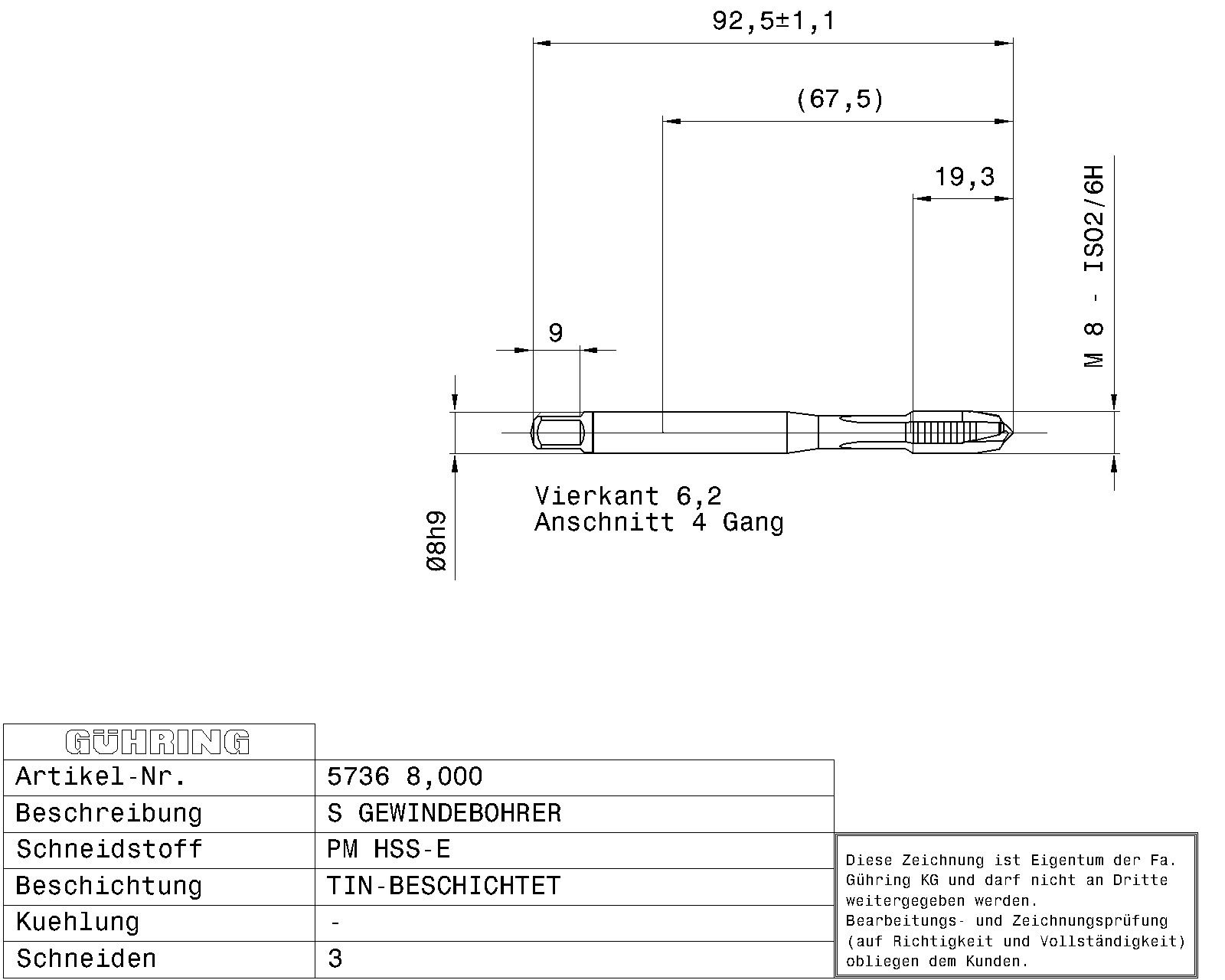

Machine taps for ISO metric threads M8 / ISO2/6H / DIN 371 / DIN 2184-1 / HSS-E-PM / TiN / Type: N / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0290 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: TiN Discount group: 203 Type: 5736, N Cutting direction: right-hand Material: HSS-E-PM Additional information: Internal threading Form: B Coloured ring: gold ring Threads: M Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 8.000 Weight: 0.029 No of cutting edges: 3 Total length: 90.000 Thread length: 17.000 Groove length: 31.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening 1: 6.200 Neck Ø: 6.300 Core hole Ø: 6.80 Shank Ø: 8.000 Nominal dimension thread: M8 Pitch: 1.250 External Ø: 8.070 Reach length: 68.000 Statistical goods number: 82074010

Brand

Guhring
