Guhring Metric Gun Taps HSS-E Black band Carbo Coated

Product Code: 4672 14,000

$176.02$160.02 Ex. GST

Product Code: 4672 14,000 SKU 4672 14,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Taps HSS-E Black band Carbo Coated

Guhring Metric Gun Taps HSS-E Black band Carbo Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

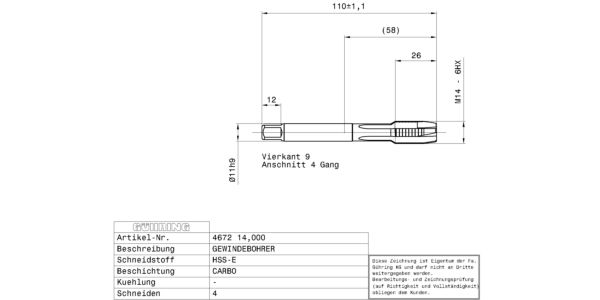

Machine taps for ISO metric threads M14 / 6HX / 3xD / DIN 376 / DIN 2184-1 / HSS-E / Carbo / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: N ≤ 7% Si

Additional information

Weight	0.082 kg
Dimensions
barcode	9046720140000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: Carbo Discount group: 103 Type: 4672 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Threads: M Tolerance class thread: 6HX Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 14.000 Weight: 0.082 No of cutting edges: 4 Total length: 110.000 Thread length: 26.000 Groove length: 49.000 Usable length: 53.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Core hole Ø: 12.00 Shank Ø: 11.000 Nominal dimension thread: M14 Pitch: 2.000 External Ø: 14.090 Reach length: 58.000 Statistical goods number: 82074010

Brand

Guhring
