Guhring Metric Gun Taps HSS-E Black band Carbo Coated

Product Code: 4672 2,500

$65.92$59.93 Ex. GST

Product Code: 4672 2,500 SKU 4672 2,500 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Gun Taps HSS-E Black band Carbo Coated

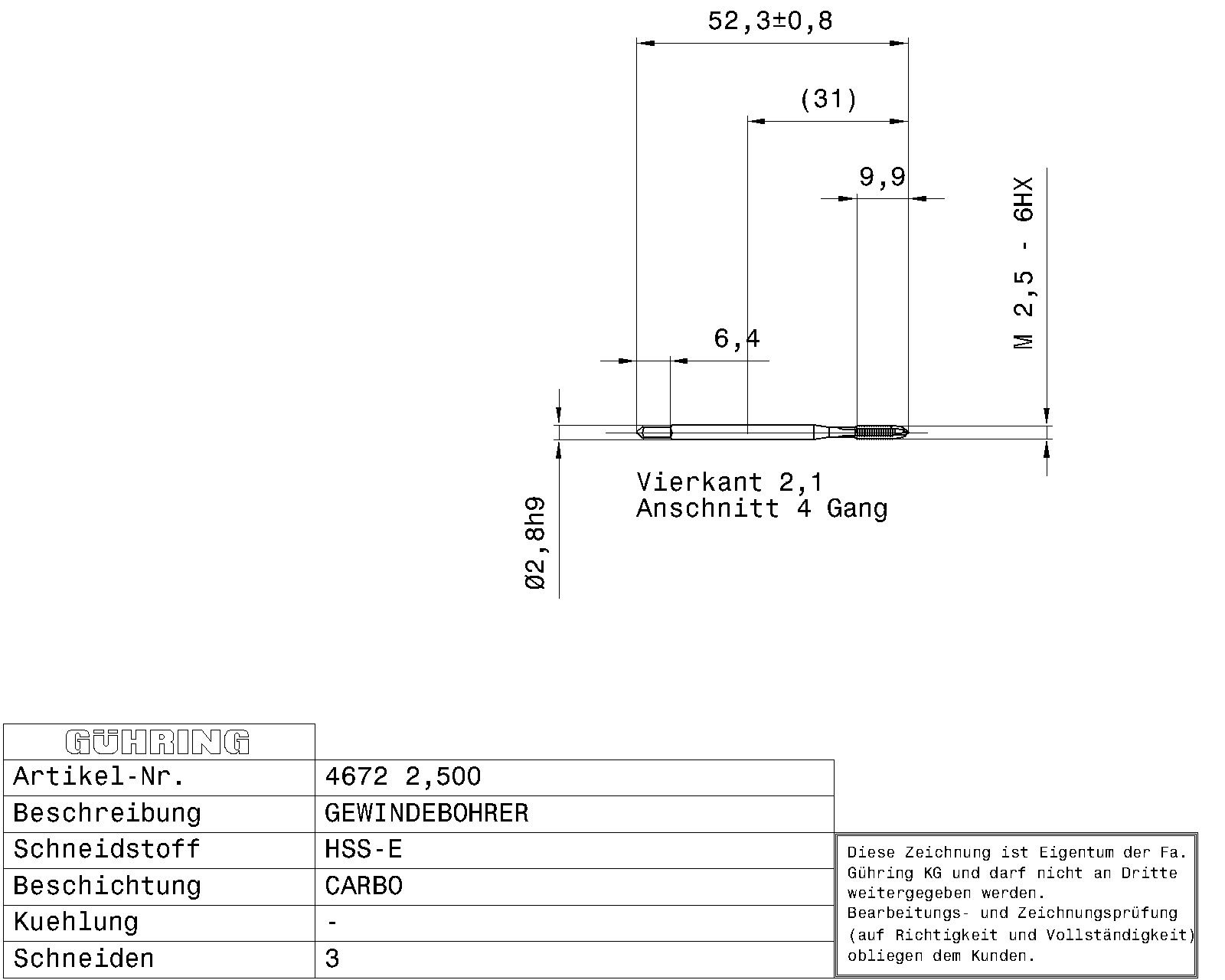

Guhring Metric Gun Taps HSS-E Black band Carbo Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M2,5 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / Carbo / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: N ≤ 7% Si

Additional information

Weight	0.004 kg
Dimensions
barcode	9046720025000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Carbo Discount group: 103 Type: 4672 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Threads: M Tolerance class thread: 6HX Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 2.500 Weight: 0.004 No of cutting edges: 3 Total length: 50.000 Thread length: 9.000 Groove length: 12.500 Usable length: 14.500 Norm 2: DIN 2184-1 Wrench opening 1: 2.100 Core hole Ø: 2.05 Shank Ø: 2.800 Nominal dimension thread: M2,5 Pitch: 0.450 External Ø: 2.540 Reach length: 31.000 Statistical goods number: 82074010

Brand

Guhring
