Guhring Metric Spiral Long Series Tap-TiN Coated HSS-E Gold Band

Description

Machine taps for ISO metric threads M4 / 6HX / Company std. / HSS-E / TiN / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Weight	0.0130 kg

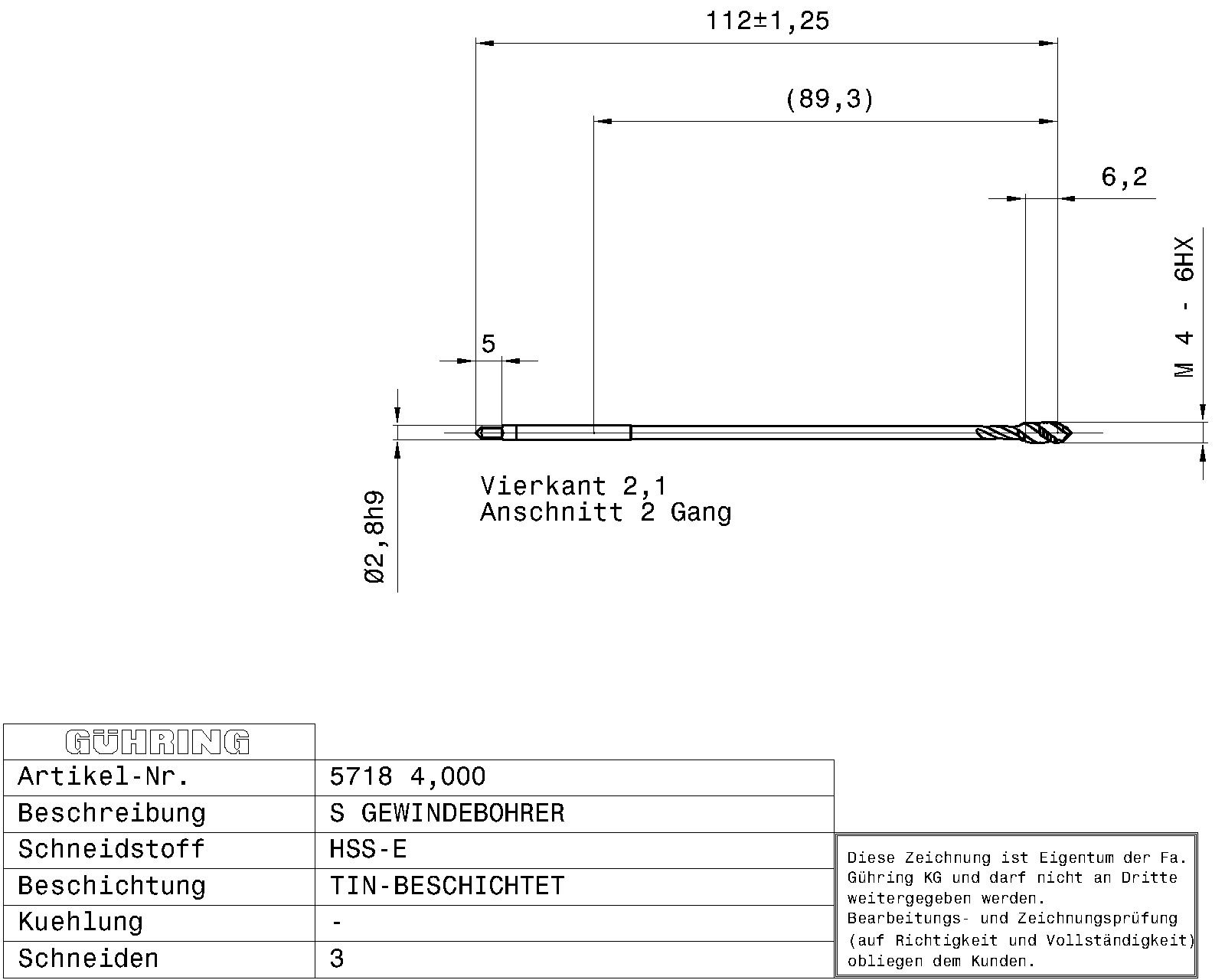

Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: Company std. Surface: TiN Discount group: 203 Type: 5718 Cutting direction: Right-hand Type (N R40): N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: Gold ring Threads: M Tolerance class thread: 6HX Hole type: Blind hole Groove: 40° right-hand helix Chamfer lead length: 2-3 Code no.: 4.000 Weight: 0.013 No of cutting edges: 3 Total length: 112.000 Thread length: 7.500 Groove length: 17.000 Usable length: 77.000 Wrench opening 1: 2.100 Neck Ø: 2.600 Core hole Ø: 3.30 Shank Ø: 2.800 Nominal dimension thread: M4 Pitch: 0.700 External Ø: 4.050 Reach length: 92.000 Statistical goods number: 82074010
