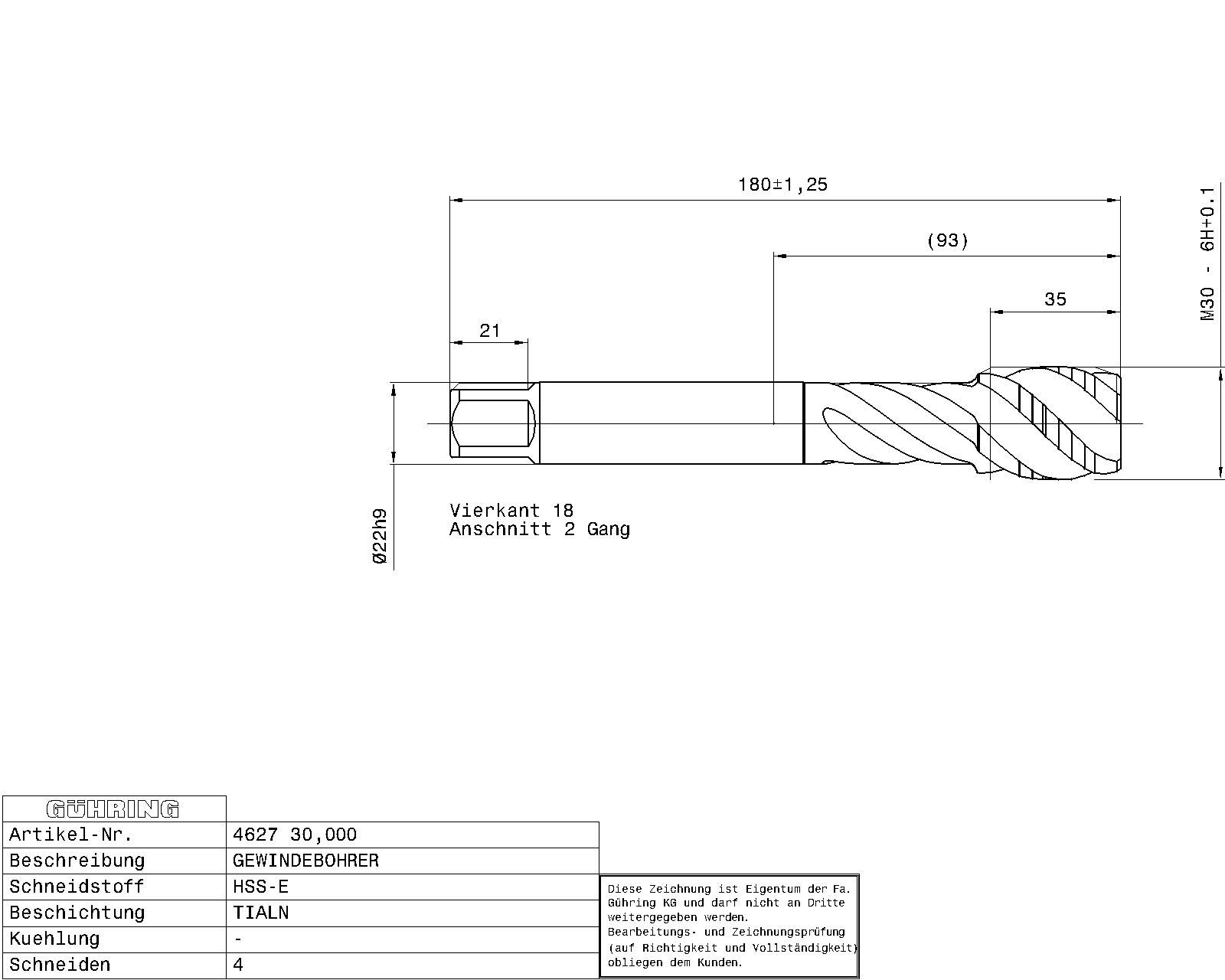

Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6H +0.1

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 376
Surface: TiAlN
Discount group: 103
Type: 4627
Cutting direction: Right-hand
Type: VA R45
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: Blue ring
Threads: M
Tolerance class thread: 6H+0.1
Hole type: Blind hole
Groove: 45° right-hand helix
Chamfer lead length: 2-3
Code no.: 30.000
Weight: 0.495
Number of cutting edges: 4
Total length: 180.000
Thread length: 35.000
Groove length: 80.000
Usable length: 85.000
Norm 2: DIN 2184-1
Wrench opening: 18.000
Neck Ø: 21.700
Core hole Ø: 26.50
Shank Ø: 22.000
Nominal dimension thread: M30
Pitch: 3.500
External Ø: 30.220
Reach length: 93.000
Statistical goods number: 82074010
