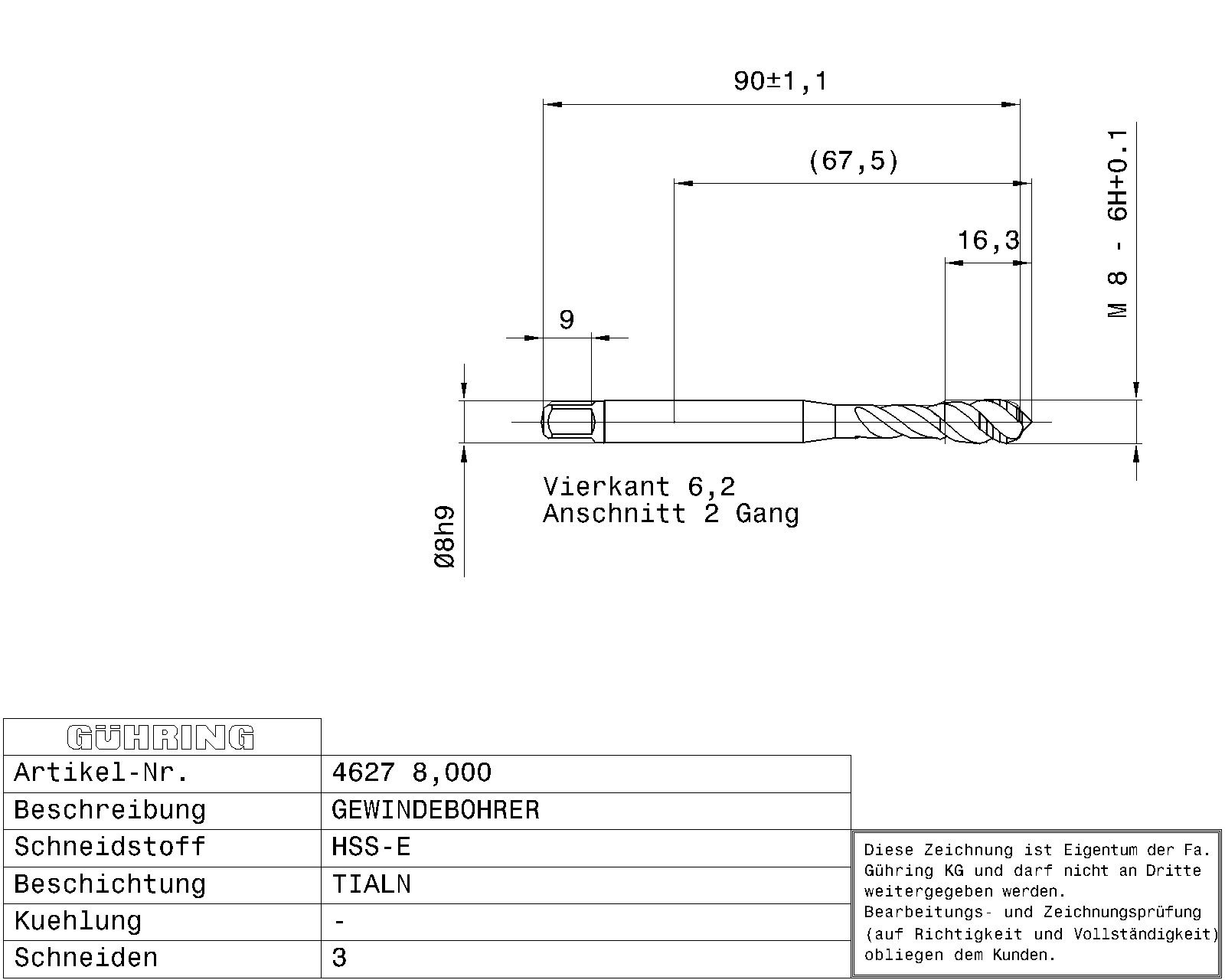

Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6H +0.1

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 371
Surface: TiAlN
Discount group: 103
Type: 4627
Cutting direction: Right-hand
Type: VA R45
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: Blue ring
Threads: M
Tolerance class thread: 6H+0.1
Hole type: Blind hole
Groove: 45° right-hand helix
Chamfer lead length: 2-3
Code no.: 8.000
Weight: 0.033
Number of cutting edges: 3
Total length: 90.000
Thread length: 14.000
Groove length: 31.000
Usable length: 35.000
Norm 2: DIN 2184-1
Wrench opening: 6.200
Neck Ø: 6.300
Core hole Ø: 6.80
Shank Ø: 8.000
Nominal dimension thread: M8
Pitch: 1.250
External Ø: 8.170
Reach length: 68.000
Statistical goods number: 82074010
