Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX

Product Code: 393 3,000

$97.49$88.63 Ex. GST

Product Code: 393 3,000 SKU 393 3,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX

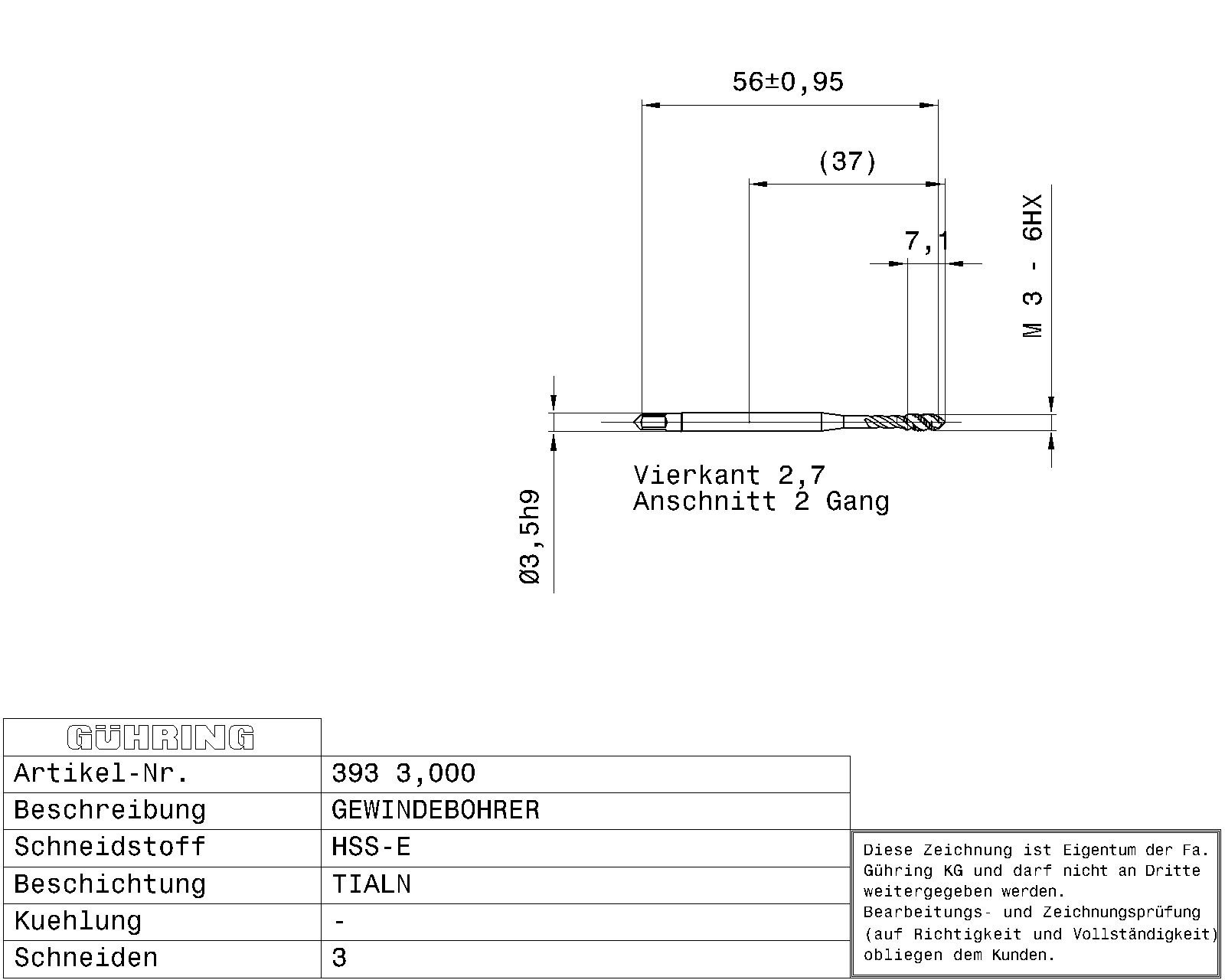

Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M3 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.005 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 371 Surface: TiAlN Discount Group: 103 Type: 393 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: M Tolerance Class Thread: 6HX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 3.000 Weight: 0.005 No. of Cutting Edges: 3 Total Length: 56.000 Thread Length: 6.000 Groove Length: 14.000 Usable Length: 18.000 Norm 2: DIN 2184-1 Wrench Opening 1: 2.700 Neck Ø: 2.300 Core Hole Ø: 2.50 Shank Ø: 3.500 Nominal Dimension Thread: M3 Pitch: 0.500 External Ø: 3.040 Reach Length: 37.000 Statistical Goods Number: 82074010

Brand

Guhring
