Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX

Product Code: 393 18,000

$457.57$415.97 Ex. GST

Product Code: 393 18,000 SKU 393 18,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX

Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

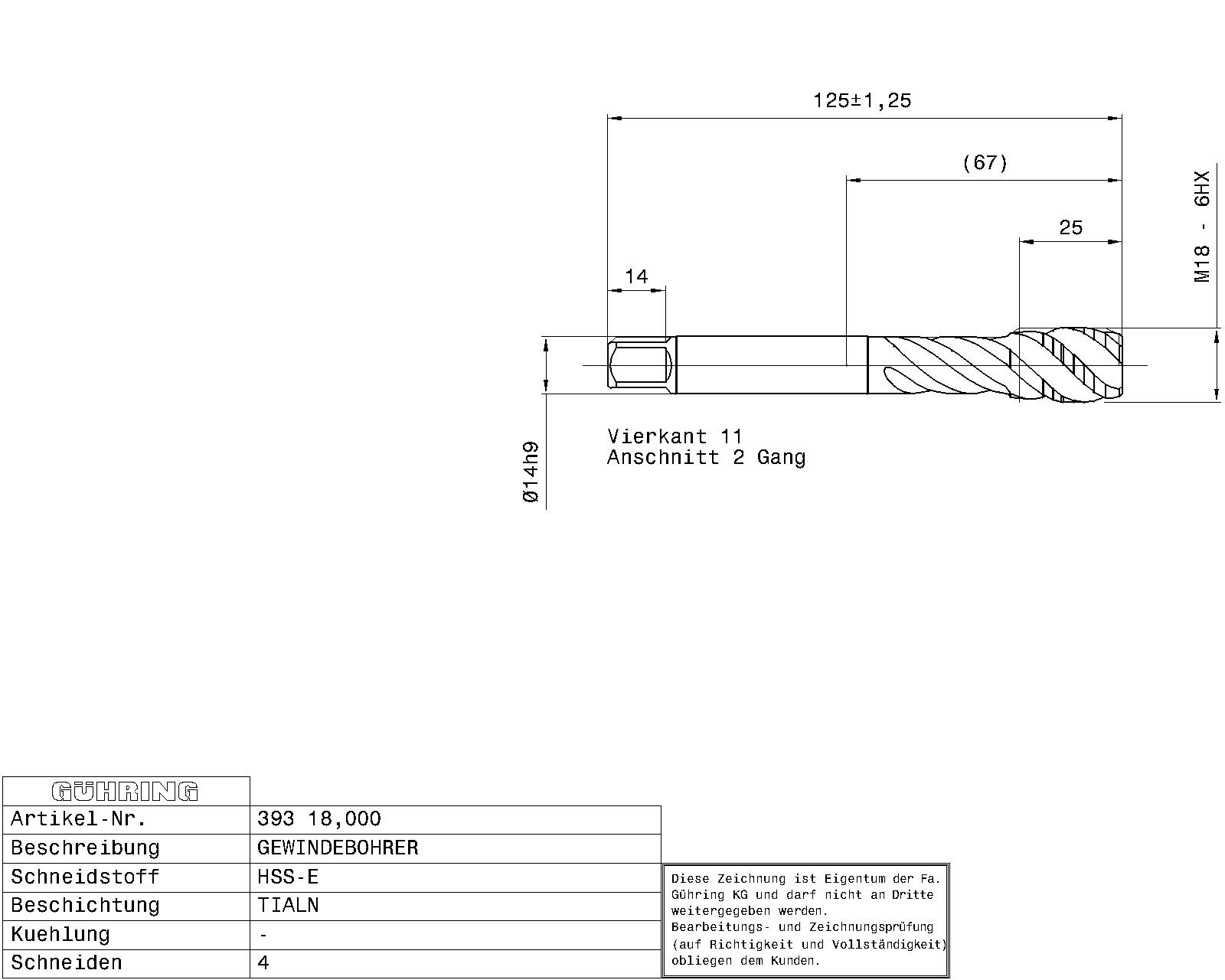

Machine taps for ISO metric threads M18 / 6HX / 3xD / DIN 376 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.138 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 376 Surface: TiAlN Discount Group: 103 Type: 393 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: M Tolerance Class Thread: 6HX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 18.000 Weight: 0.138 No. of Cutting Edges: 4 Total Length: 125.000 Thread Length: 25.000 Groove Length: 58.000 Usable Length: 62.000 Norm 2: DIN 2184-1 Wrench Opening 1: 11.000 Neck Ø: 13.800 Core Hole Ø: 15.50 Shank Ø: 14.000 Nominal Dimension Thread: M18 Pitch: 2.500 External Ø: 18.100 Reach Length: 67.000 Statistical Goods Number: 82074010

Brand

Guhring
