Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX

Product Code: 393 2,500

$99.28$90.25 Ex. GST

Product Code: 393 2,500 SKU 393 2,500 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX

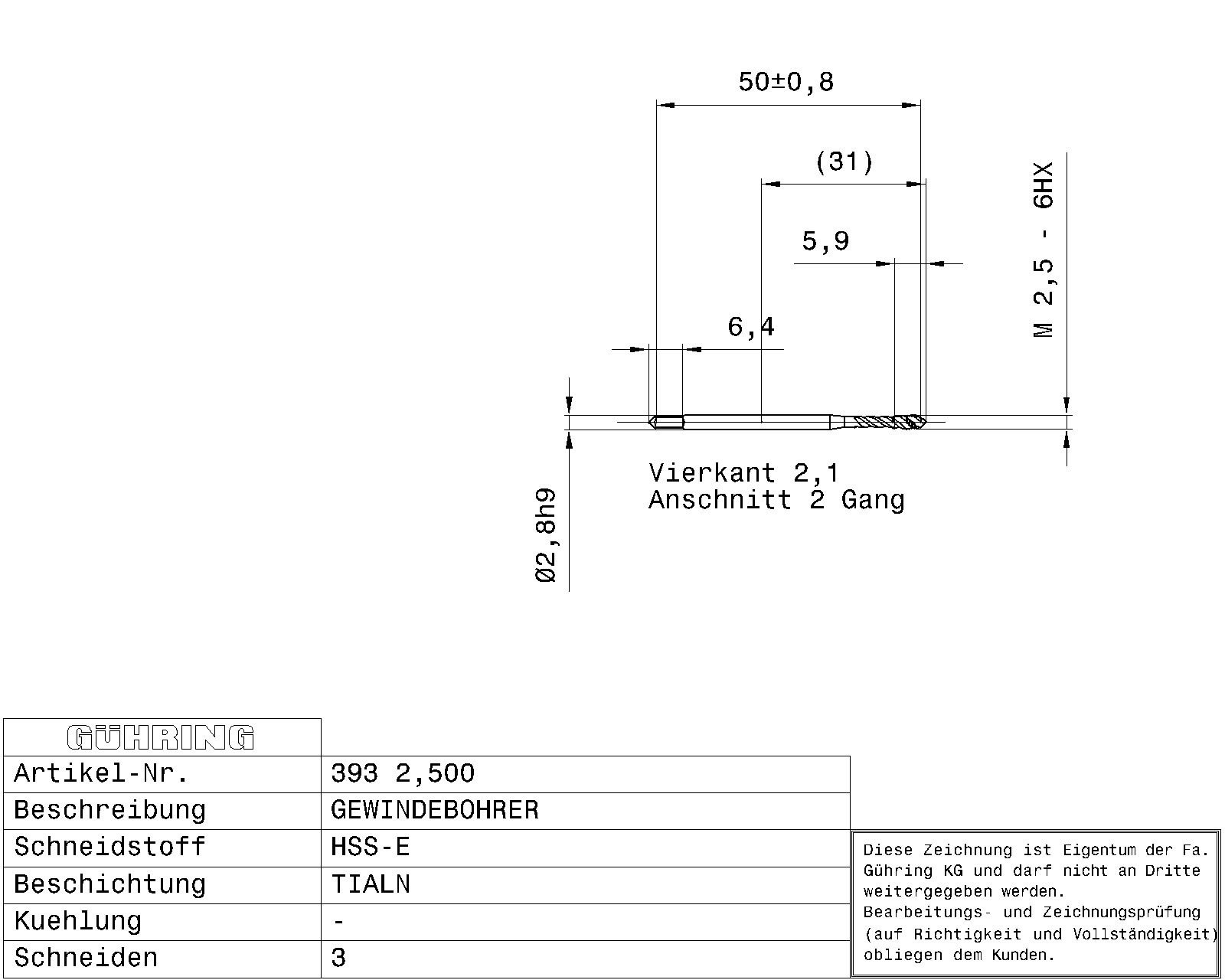

Guhring Metric Spiral Tap HSS-E Blue band TiAlN coated 6HX - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M2,5 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.004 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 371 Surface: TiAlN Discount Group: 103 Type: 393 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: M Tolerance Class Thread: 6HX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 2.500 Weight: 0.004 No. of Cutting Edges: 3 Total Length: 50.000 Thread Length: 5.000 Groove Length: 12.500 Usable Length: 14.500 Norm 2: DIN 2184-1 Wrench Opening 1: 2.100 Neck Ø: 2.000 Core Hole Ø: 2.05 Shank Ø: 2.800 Nominal Dimension Thread: M2.5 Pitch: 0.450 External Ø: 2.540 Reach Length: 31.000 Statistical Goods Number: 82074010

Brand

Guhring
