Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6HX long series

Connection code machine side: Straight shank
Internal cooling: Without
Norm: Company std.
Surface: TiAlN
Discount group: 103
Type: 4633
Cutting direction: Right-hand
Type: VA R45
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: Blue ring
Threads: M
Tolerance class thread: 6HX
Hole type: Blind hole
Groove: 45° right-hand helix
Chamfer lead length: 2-3
Code no.: 20.000
Weight: 0.425
Number of cutting edges: 4

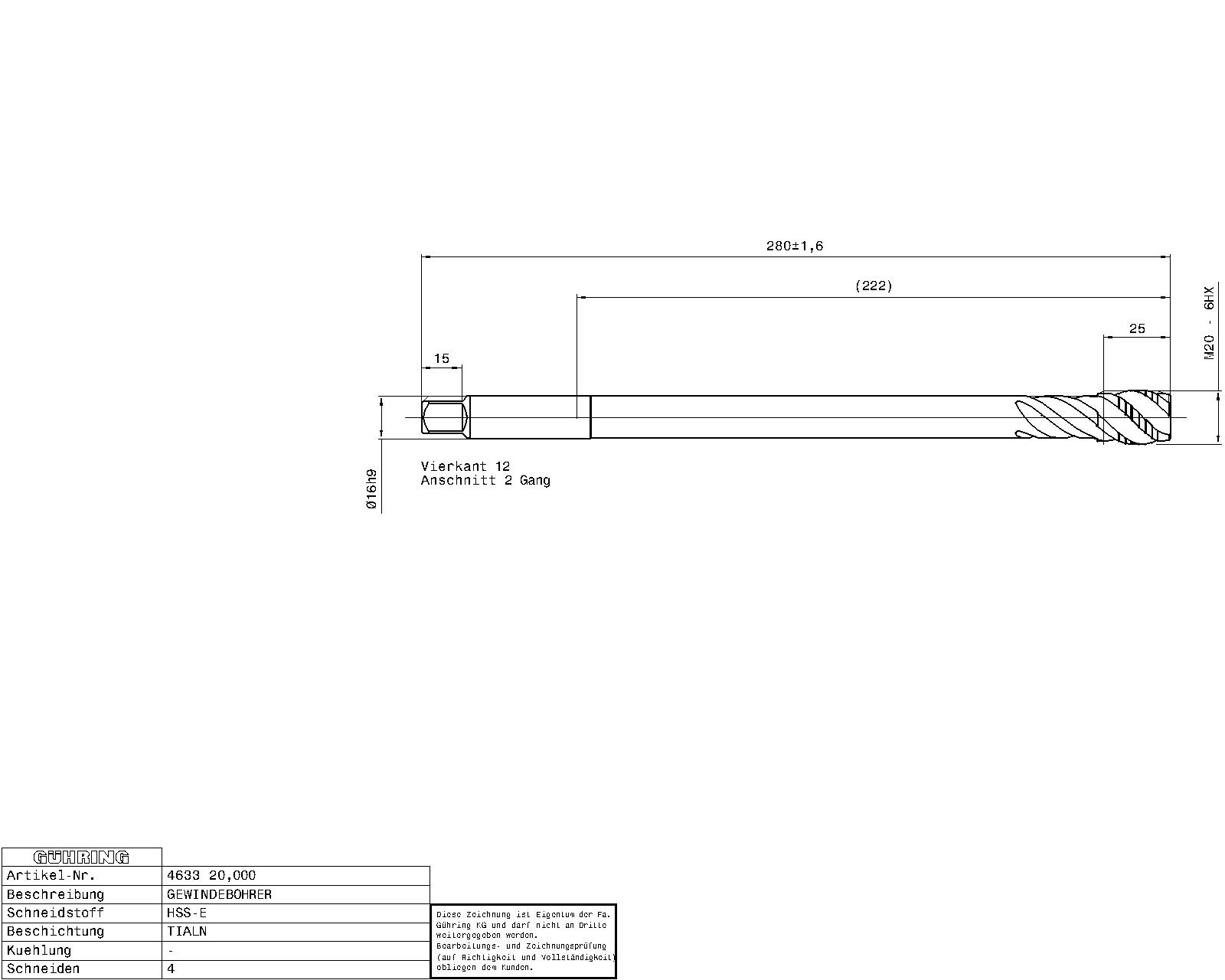

Total length: 280.000
Thread length: 25.000
Groove length: 58.000
Usable length: 217.000
Wrench opening 1: 12.000
Neck Ø: 15.800
Core hole Ø: 17.50
Shank Ø: 16.000
Nominal dimension thread: M20
Pitch: 2.500
External Ø: 20.100
Reach length: 222.000
Statistical goods number: 82074010
