Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6HX long series

Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6HX long series

Product Code: 4633 14,000

$543.98$494.53 Ex. GST

Product Code: 4633 14,000 SKU 4633 14,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6HX long series

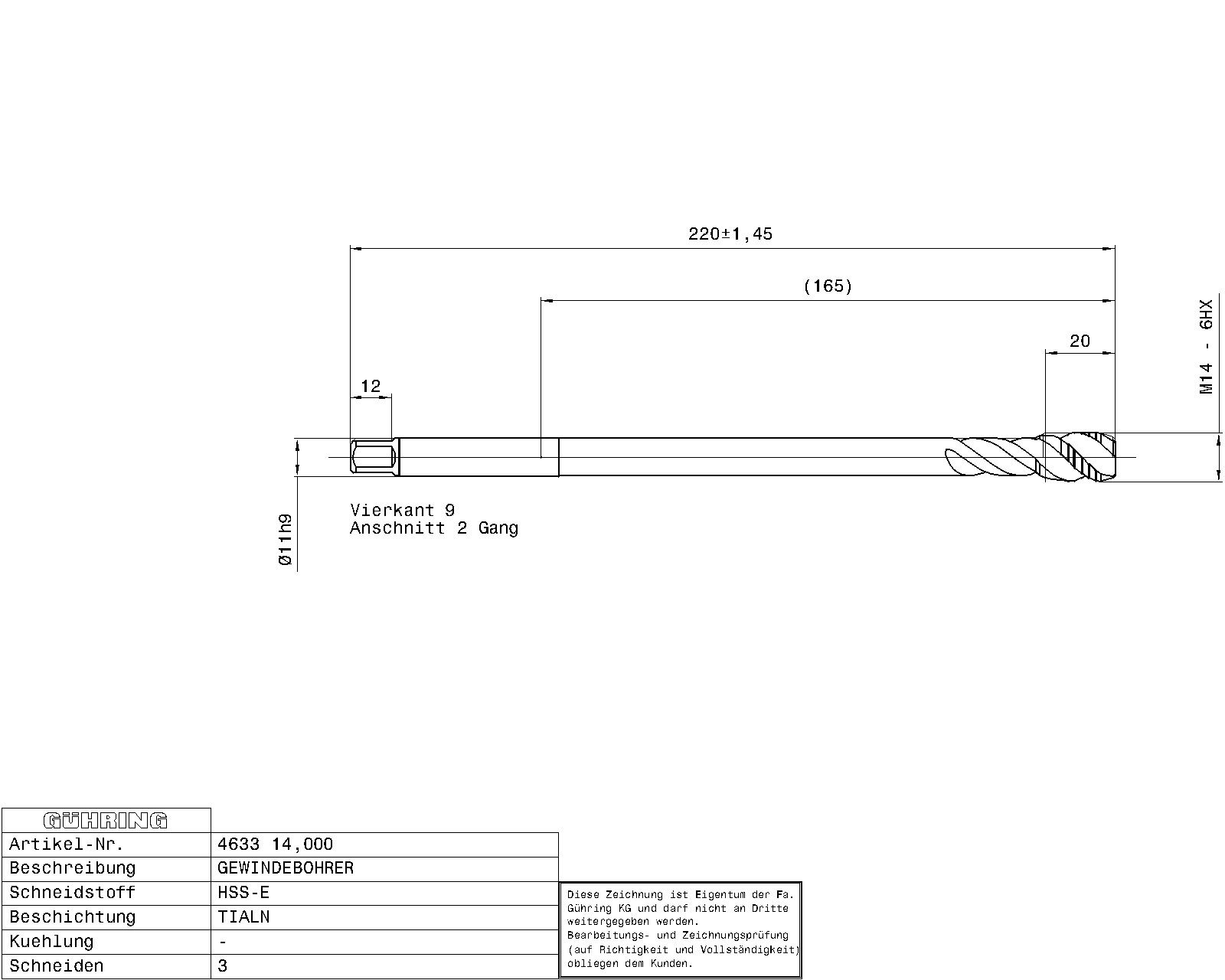

Guhring Metric Spiral Tap HSS-E Blue band TIAlN coated 6HX long series - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M14 / 6HX / 3xD / Company std. / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand /
Execution: long design

Additional information

Weight	0.166 kg
Dimensions
barcode	9046330140000
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: Company std. Surface: TiAlN Discount group: 103 Type: 4633 Cutting direction: Right-hand Type: VA R45 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: Blue ring Threads: M Tolerance class thread: 6HX Hole type: Blind hole Groove: 45° right-hand helix Chamfer lead length: 2-3 Code no.: 14.000 Weight: 0.166 Number of cutting edges: 3 Total length: 220.000 Thread length: 20.000 Groove length: 49.000 Usable length: 160.000 Wrench opening 1: 9.000 Neck Ø: 10.800 Core hole Ø: 12.00 Shank Ø: 11.000 Nominal dimension thread: M14 Pitch: 2.000 External Ø: 14.090 Reach length: 165.000 Statistical goods number: 82074010

Brand

Guhring
