Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band

Product Code: 5722 14,000

$229.81$208.92 Ex. GST

Product Code: 5722 14,000 SKU 5722 14,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band

Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M14 / ISO2/6H / DIN 376 / DIN 2184-1 / HSS-E-PM / TiN / Type: N R50 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0730 kg
Dimensions
barcode

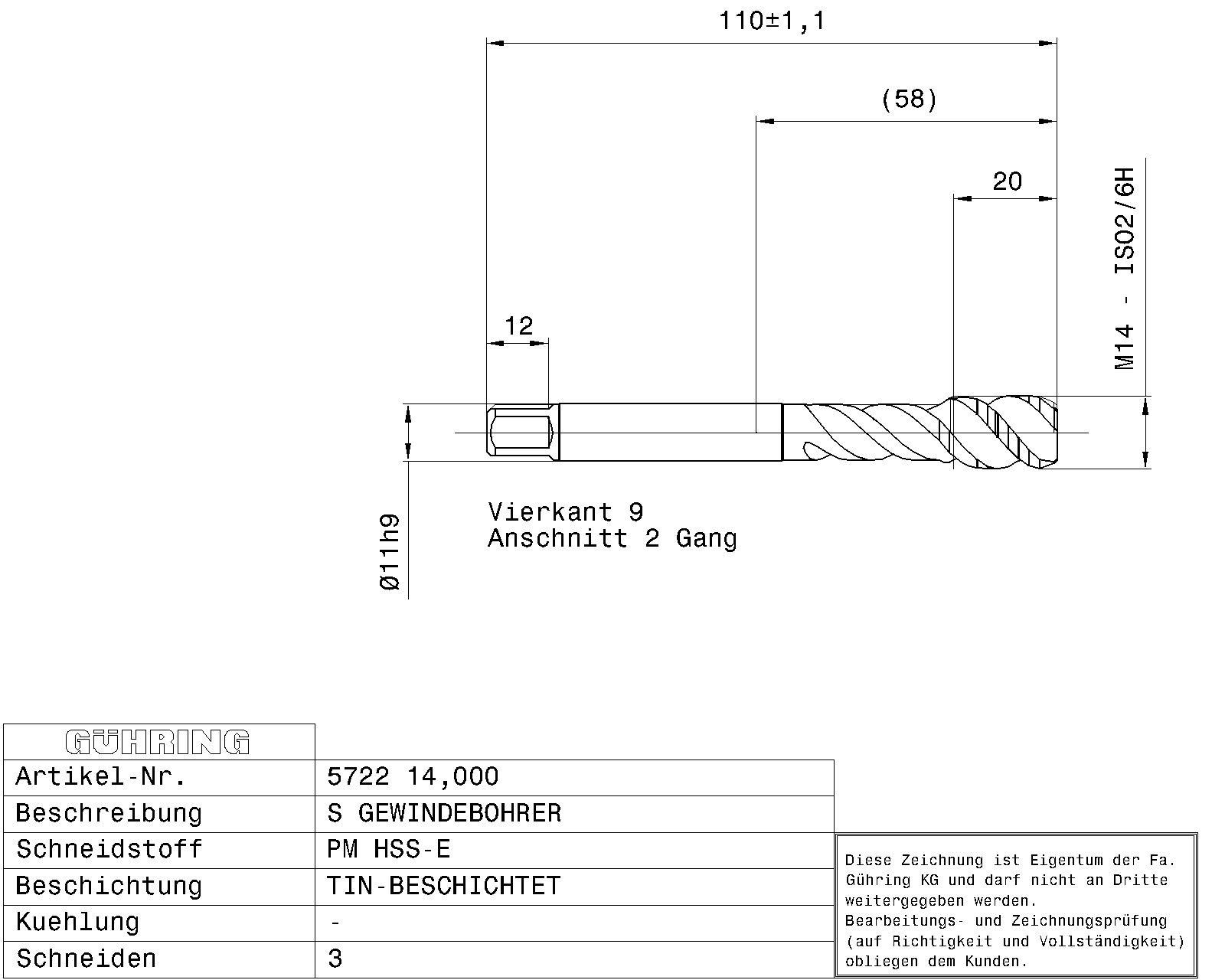

Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 376 Surface: TiN Discount group: 203 Type: 5722 Cutting direction: Right-hand Type (N R50): N R50 Material: HSS-E-PM Additional information: Internal threading Form: C Coloured ring: Gold ring Threads: M Tolerance class thread: ISO2/6H Hole type: Blind hole Groove: 50° right-hand helix Chamfer lead length: 2-3 Code no.: 14.000 Weight: 0.073 No of cutting edges: 3 Total length: 110.000 Thread length: 20.000 Groove length: 49.000 Usable length: 53.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 10.800 Core hole Ø: 12.00 Shank Ø: 11.000 Nominal dimension thread: M14 Pitch: 2.000 External Ø: 14.090 Reach length: 58.000 Statistical goods number: 82074010

Brand

Guhring
