Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band

Product Code: 5722 6,000

$90.82$82.56 Ex. GST

Product Code: 5722 6,000 SKU 5722 6,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band

Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

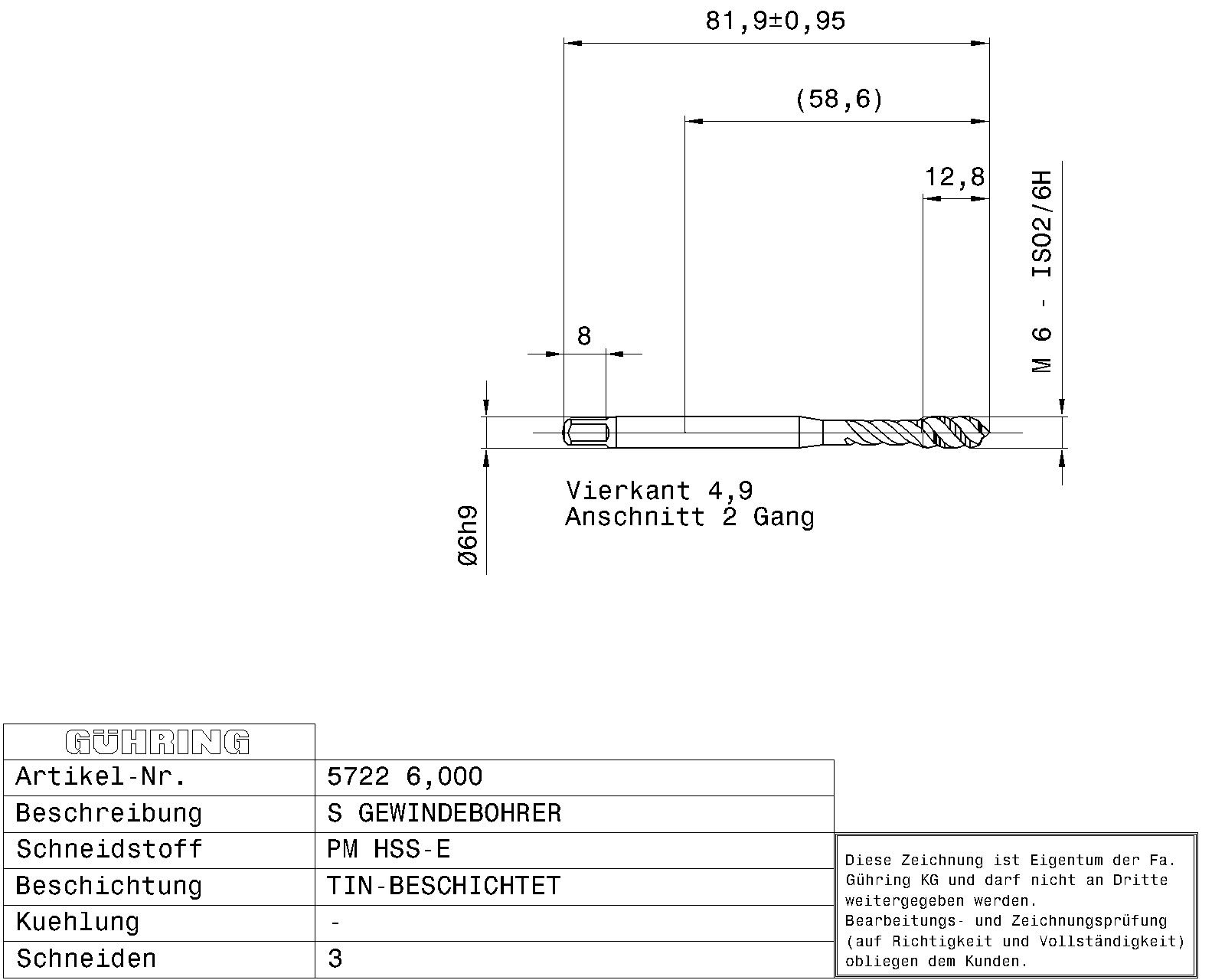

Machine taps for ISO metric threads M6 / ISO2/6H / DIN 371 / DIN 2184-1 / HSS-E-PM / TiN / Type: N R50 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0140 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 371 Surface: TiN Discount group: 203 Type: 5722 Cutting direction: Right-hand Type (N R50): N R50 Material: HSS-E-PM Additional information: Internal threading Form: C Coloured ring: Gold ring Threads: M Tolerance class thread: ISO2/6H Hole type: Blind hole Groove: 50° right-hand helix Chamfer lead length: 2-3 Code no.: 6.000 Weight: 0.014 No of cutting edges: 3 Total length: 80.000 Thread length: 11.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Neck Ø: 4.700 Core hole Ø: 5.00 Shank Ø: 6.000 Nominal dimension thread: M6 Pitch: 1.000 External Ø: 6.060 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
