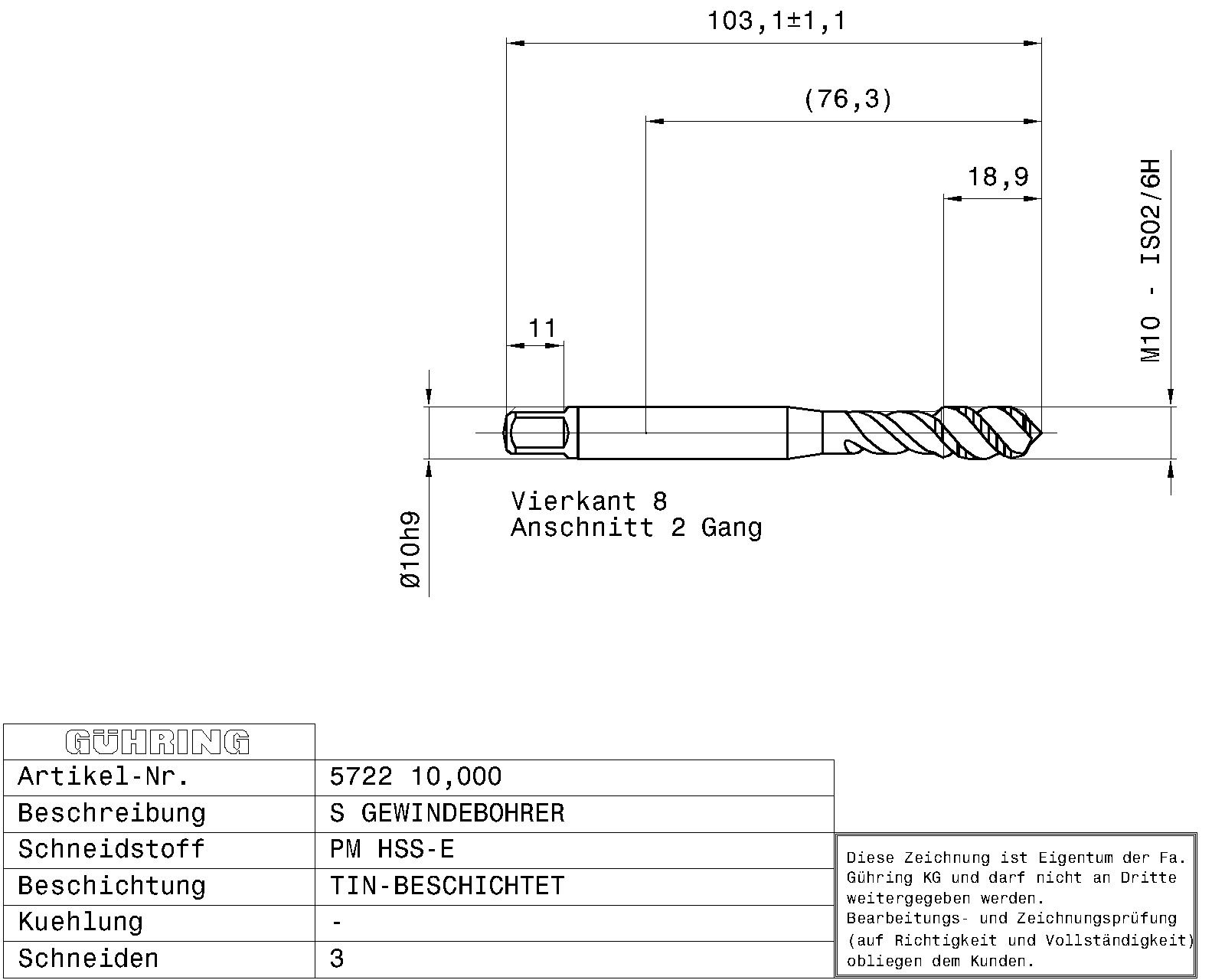

Guhring Metric Spiral Tap-TiN Coated HSS-E-PM Gold Band

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 371
Surface: TiN
Discount group: 203
Type: 5722
Cutting direction: Right-hand
Type (N R50): N R50
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Coloured ring: Gold ring
Threads: M
Tolerance class thread: ISO2/6H
Hole type: Blind hole
Groove: 50° right-hand helix
Chamfer lead length: 2-3
Code no.: 10.000
Weight: 0.052
No of cutting edges: 3
Total length: 100.000
Thread length: 16.000
Groove length: 35.000
Usable length: 39.000
Norm 2: DIN 2184-1
Wrench opening 1: 8.000
Neck Ø: 8.100
Core hole Ø: 8.50
Shank Ø: 10.000
Nominal dimension thread: M10
Pitch: 1.500
External Ø: 10.070
Reach length: 77.000
Statistical goods number: 82074010
