Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

Product Code: 4670 16,000

$188.91$171.74 Ex. GST

Product Code: 4670 16,000 SKU 4670 16,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

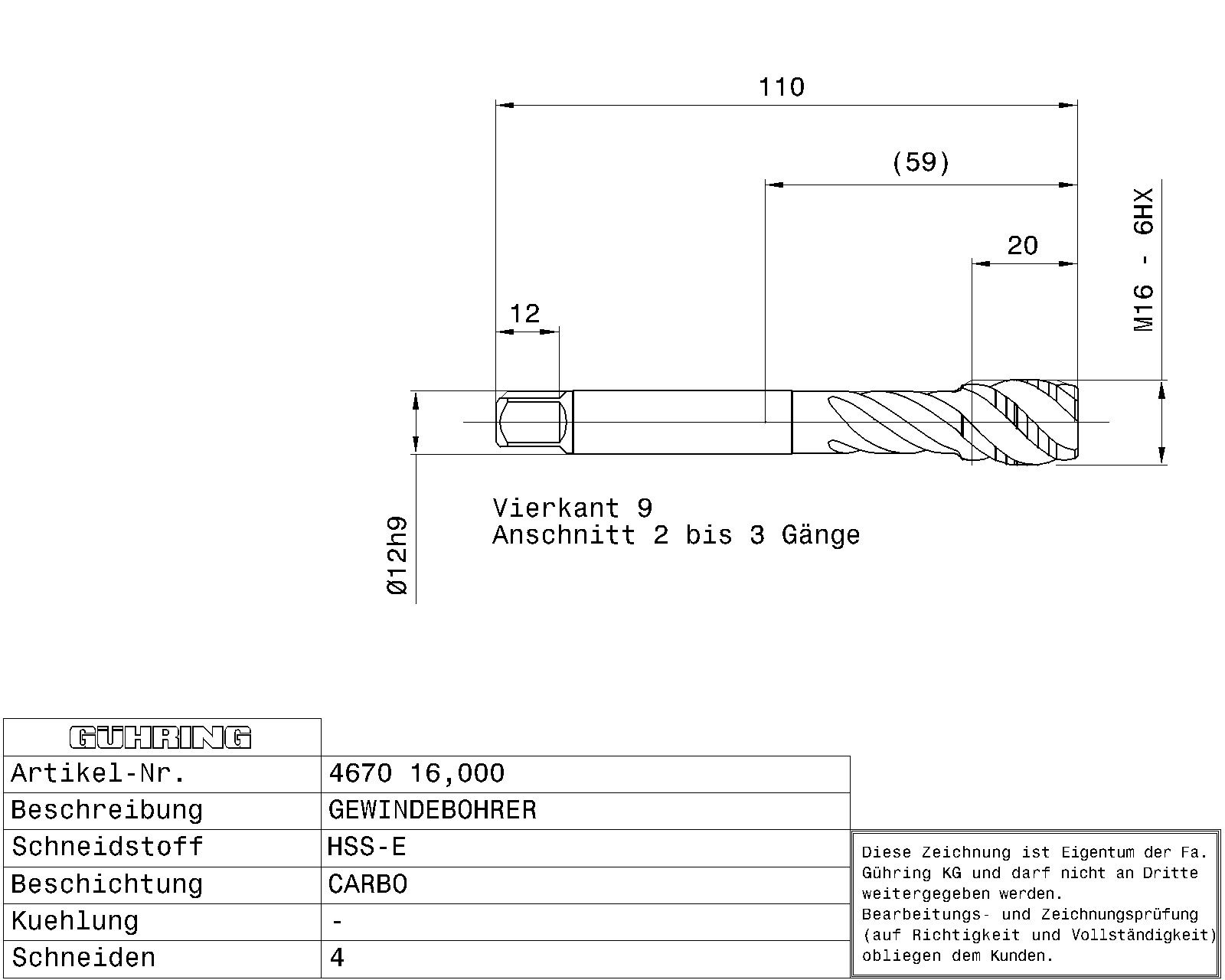

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M16 / 6HX / 3xD / DIN 376 / DIN 2184-1 / HSS-E / Carbo / Type: N R45 / Form: C / blind hole / Cutting direction: right-hand /
Application: N ≤ 7% Si

Additional information

Weight	0.09 kg
Dimensions
barcode	9046700160000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: Carbo Discount group: 103 Type: 4670 Cutting direction: right-hand Type: N R45 Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 16.000 Weight: 0.090 No of cutting edges: 4 Total length: 110.000 Thread length: 20.000 Groove length: 50.000 Usable length: 54.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Core hole Ø: 14.00 Shank Ø: 12.000 Nominal dimension thread: M16 Pitch: 2.000 External Ø: 16.090 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
